All About Cyclops
Category: Legacy Docs · Tags: cyclops, eurorack, expedition · Posts: 4
#1 — Z0NK0UT · 2019-07-19

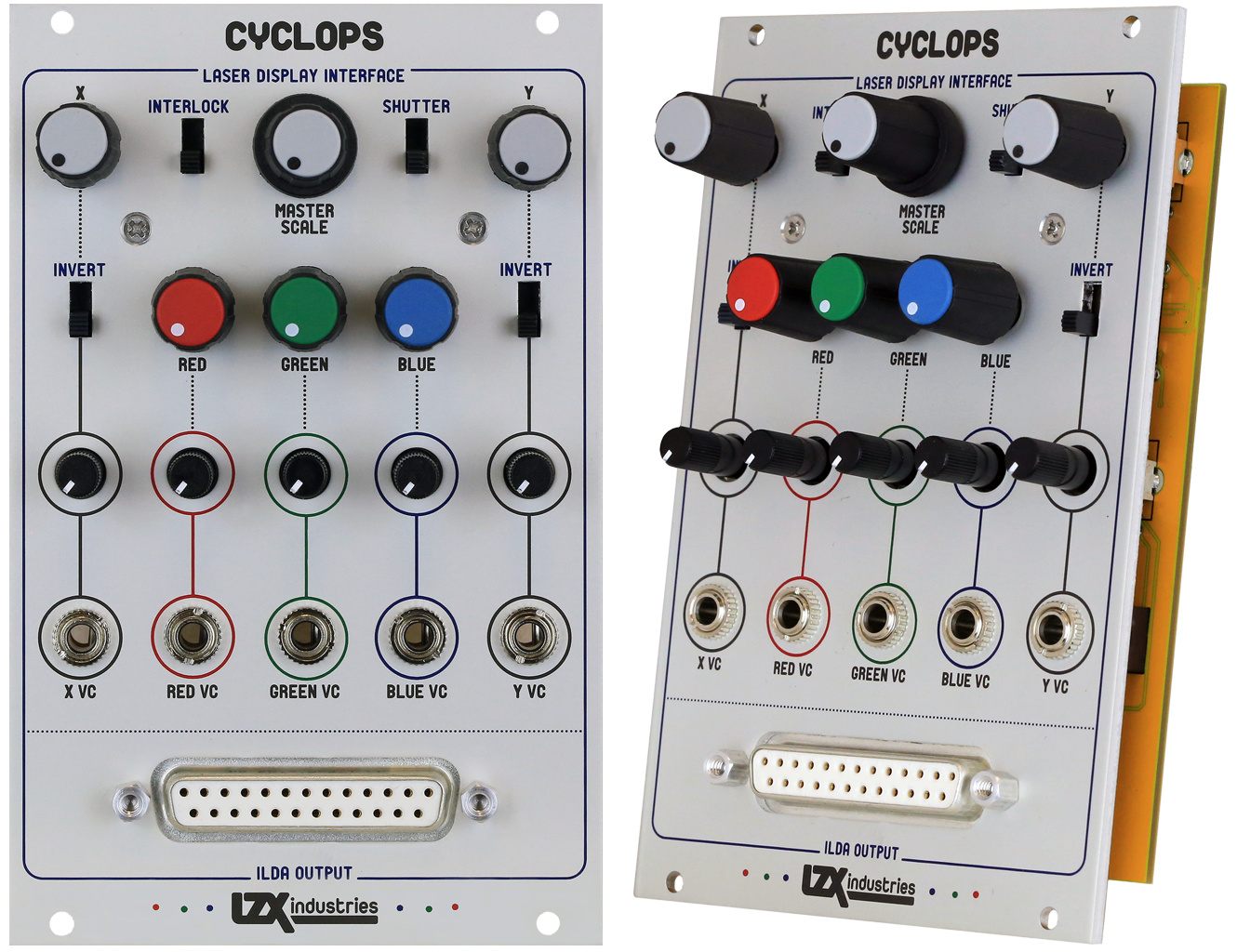

Cyclops is an interface module which converts Eurorack modular signals to the International Laser Display Association (ILDA) specification for laser show projectors. We recommend connecting Cyclops to a Eurorack modular system rich in VCOs (especially quadrature sources), multipliers, and signal mixers in order to synthesize a full range of oscillographic patterns and lissajous geometries.
Specifications
- Width: 16HP
- Max Depth: 31mm
- Power: 60mA@ +12V , 50mA@ -12V , 0mA@ +5V
Videos
Other Resources

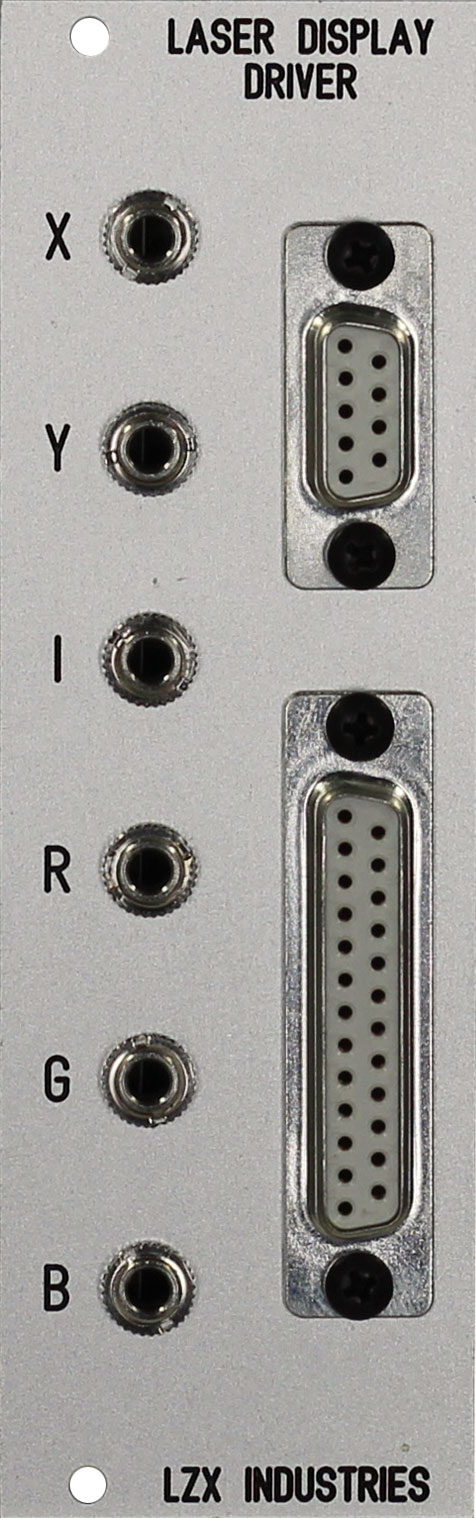

Prototype
#2 — Pagoda · 2022-12-20
@creatorlars, Will the future possibly see a Gen3 equal of Cyclops or is Cromagnon the only option? My Gen3 system is getting nice and healthy so I’m not sure I need Cromagnon, but If it gets me in the laser game then this is the way.
Thanks!
#3 — creatorlars · 2022-12-20
Pagoda wrote:
Will the future possibly see a Gen3 equal of Cyclops or is Cromagnon the only option? My Gen3 system is getting nice and healthy so I’m not sure I > > need> > Cromagnon, but If it gets me in the laser game then this is the way.>>>> Thanks!
I’d like to do ILDA interface modules in the Gen3 series, but it’s not in active development right now.
#4 — Pagoda · 2022-12-20
For sure the best reply I was crossing my fingers for.
Not to say I won’t grab a Cromagnon at the first chance I get!
