Video synth ARKANAR (PCB giveaway)

Category: Unknown · Tags: — · Posts: 9

#1 — oeil_electrique · 2021-03-16

Hi,

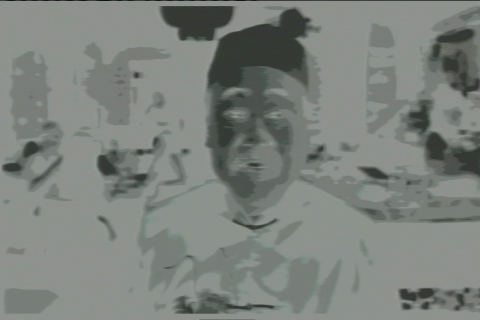

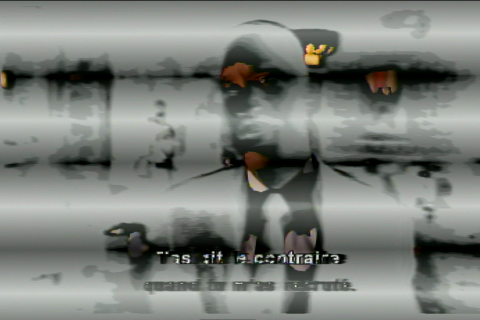

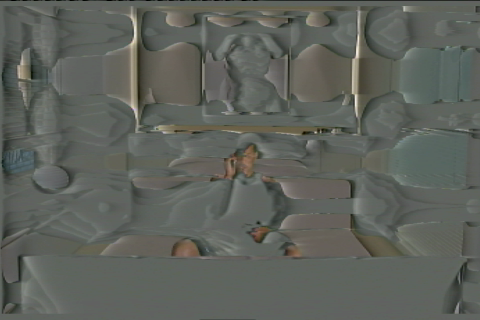

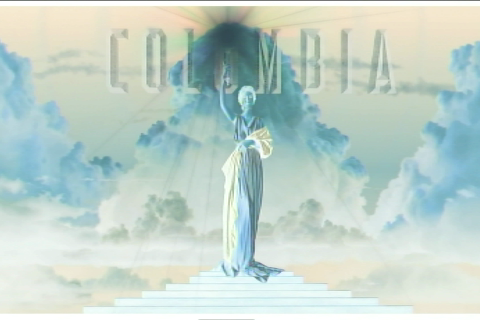

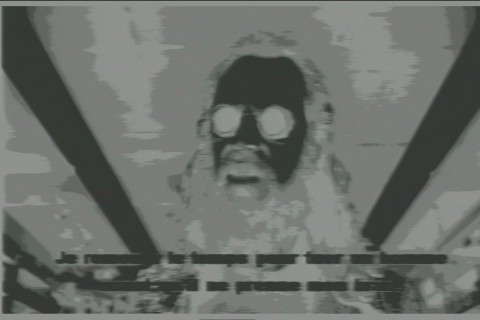

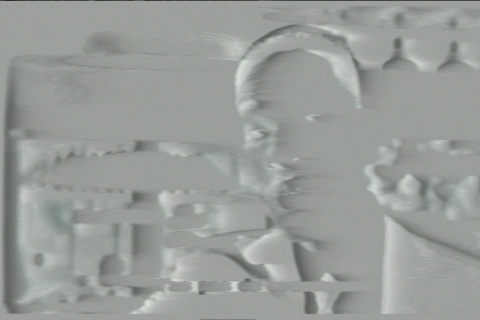

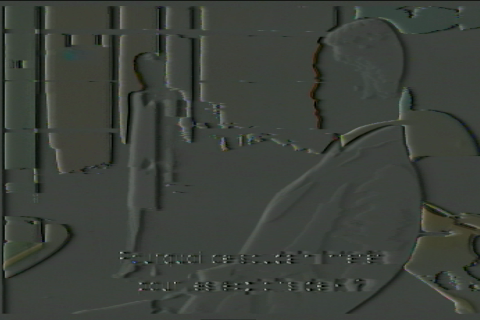

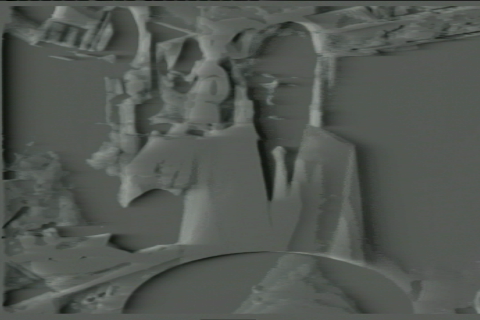

I don’t know if this the correct way to do it, but I’m giving away those 3 pcb. I’d prefer them used than burried under dust. It’s more or less a prototype for a video synth using very cheap-ass components. Therefore it’s more on the lofi-noisy side of things. No exotic part (maybe the NX5DV330 that can be changed for a CD4053)

I won’t recommend it for total beginner, there’s many wire and schematic readings. But probably be useful for prototyping or testing things. I made two stand alone thing with it.

the boards : https://rumorofsmoke.github.io/img/video_circuit/arkarnar/boards.jpg

The schematic : https://rumorofsmoke.github.io/img/video_circuit/arkarnar/processor.pdf

#2 — VanTa · 2021-03-16

Awesome!

Count me in

#3 — analogbrainsurgeon · 2021-03-17

I’m interested as well!

#4 — VisibleSignals · 2021-03-17

I’m interested too. Do you have the STM code for the MCU (page 8 of the schematic)?

#5 — oeil_electrique · 2021-03-17

Actually the stm32 part doesn’t work. I messed UP the footprint. The capacitor/resistor are 0805 package.

I added external vco and High pass filter.

#6 — VisibleSignals · 2021-03-17

I have plenty of dud prototypes in my stash too, never mind! Most of my released boards are at least rev 3

#7 — oeil_electrique · 2021-03-18

The Idea behind the st microcontroller was to produce un vertical vco which it does fine. The next version which i hope to be modular, will have this microcontroller. Reduce the part count.

#8 — saiteron · 2021-03-20

i’m interested if there are any still available!

#9 — oeil_electrique · 2021-03-21

There’s two pcbs left, send me a private message. I’m just asking three euros for the shipping.
