[ORDER] BLUR , an analog video effect module

Category: Unknown · Tags: — · Posts: 46

#1 — reverselandfill · 2022-07-07

Hi all

The BLUR module is ready!

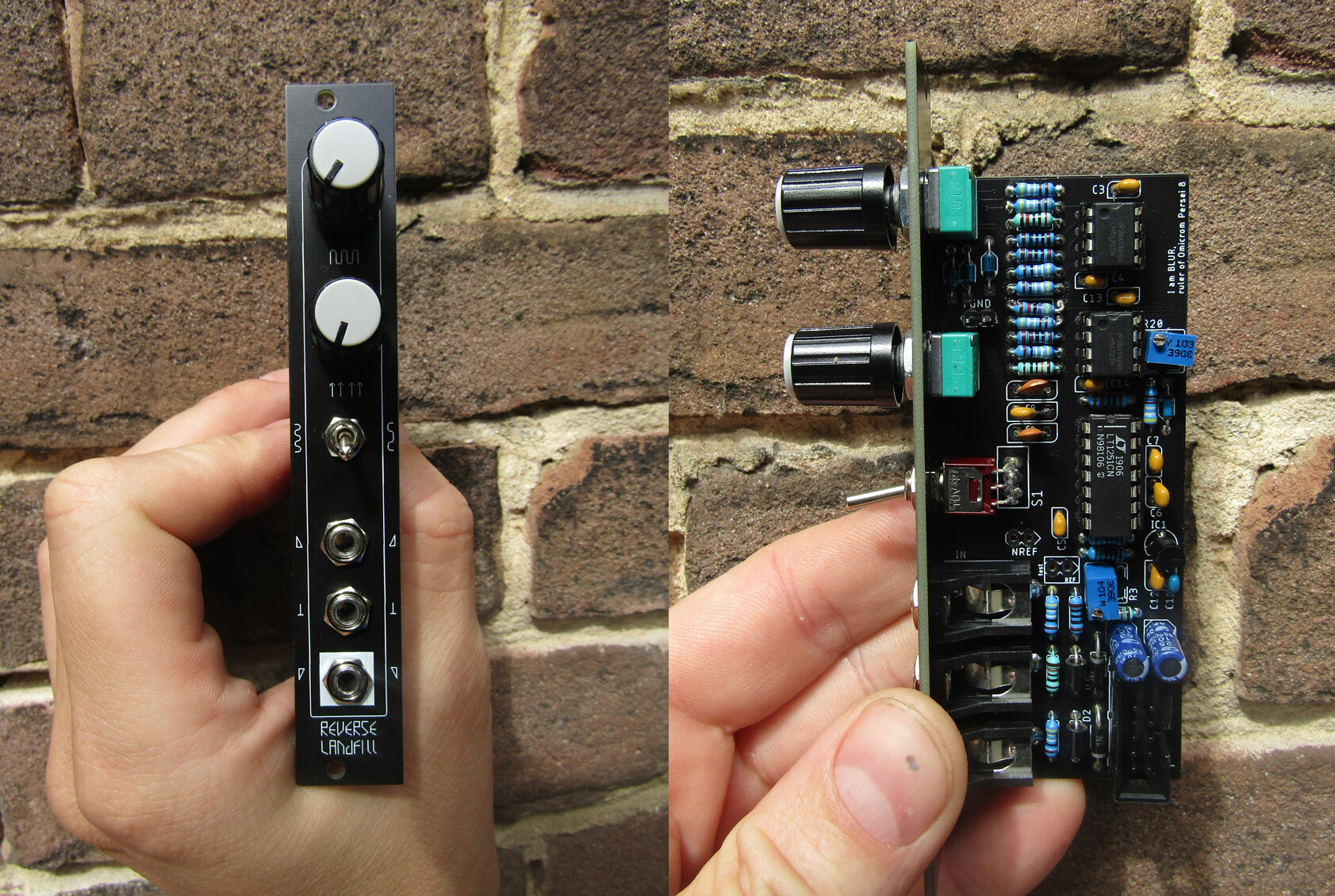

dual

Description:

An analog Blur effect for video synthesis.

This module uses a lowpass filter to achieve blur / softening trail type effects.

It has a blur amount potmeter, a gain adjustment to match/unmatch the blurred image to the dry signal when using CV and a switch for 3 different blur range settings.

There is an input jack, output jack and video rate CV control over DRY / WET (no effect / effect)

You can use this effect on all kinds of video shapes or video input signals for interesting results.

With camera feedback you can create (voltage controlled) soft trailing wash-outs and fades.

The CV input can be adjusted between 0-1v or 0-5v for easy interfacing with other eurorack modules.

features:

Blur amount pot
Gain adjust pot (to match the dry signal to the blurred tint, or offset the gain for other effects)
Blur range > 3way switch (blur/blurry/extreme smear)
Input jack
CV over dry / wet signal
Output jack
4HP black panel

trimpot for cv range (0-1v to 0-5v) with testpad

trimpot for gain adjust

jumper for blur to white or blur to black* more on this in the upcoming buildguide

Note on parts:

This module has a few expensive parts, such as 1x LT1251 & 2x LM6172 and trimpots.

I’ll make a demo video soon!

Prices: ex shipping

PCB set: 35,- euro

Full kit: 135,- euro

Module: 160,- euro

Shipping is 15,- euro worldwide with tracking.

If you are interested, please reply with the amount and type (pcbs, kit or module)

This way I know how much parts I have to order. I have 30 pcb sets in stock. (more will be ordered later)

A few other projects will be released soon, shipping can be combined.

(3TrinsRGB output expander, 3trinsRGB triple comparator v6, XFADE)

more info, BOM (updated 08-07-22) and a short video clip: https://www.reverselandfill.org/diy/blur-analog-video-effect/

#2 — phosphenes · 2022-07-07

Looks great! Is that price in Euros and does it include shipping? Thanks

#3 — reverselandfill · 2022-07-07

Shipping info & currency & BOM link added in 1st post.

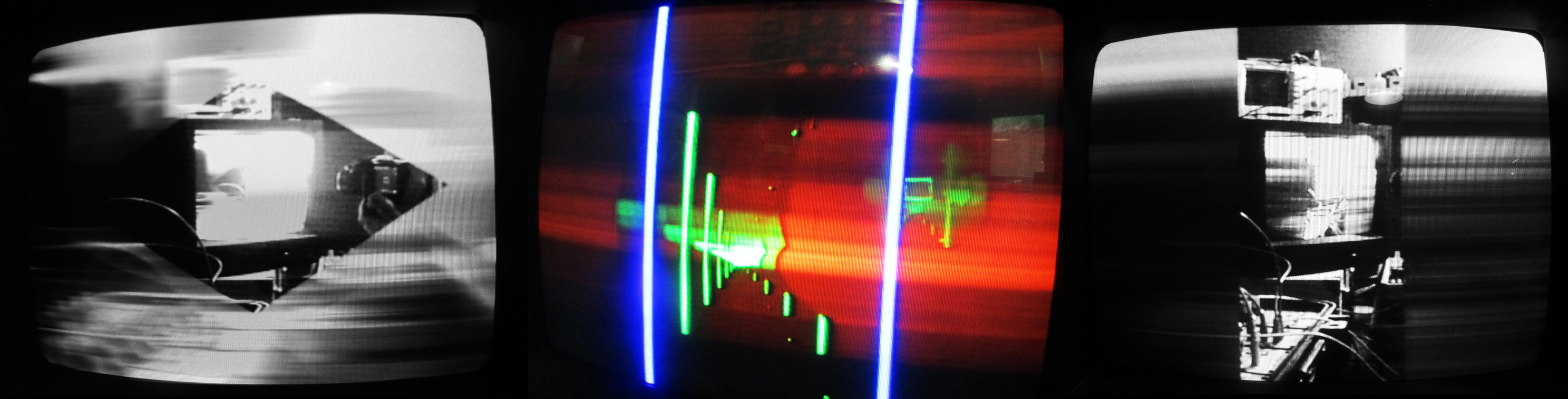

Here are three screengrabs.

the black and white ones are with keyed shapes into the CV input,

The color one is with camera feedback and blur on the red channel.

blur range on the ‘extreme’ setting

screens

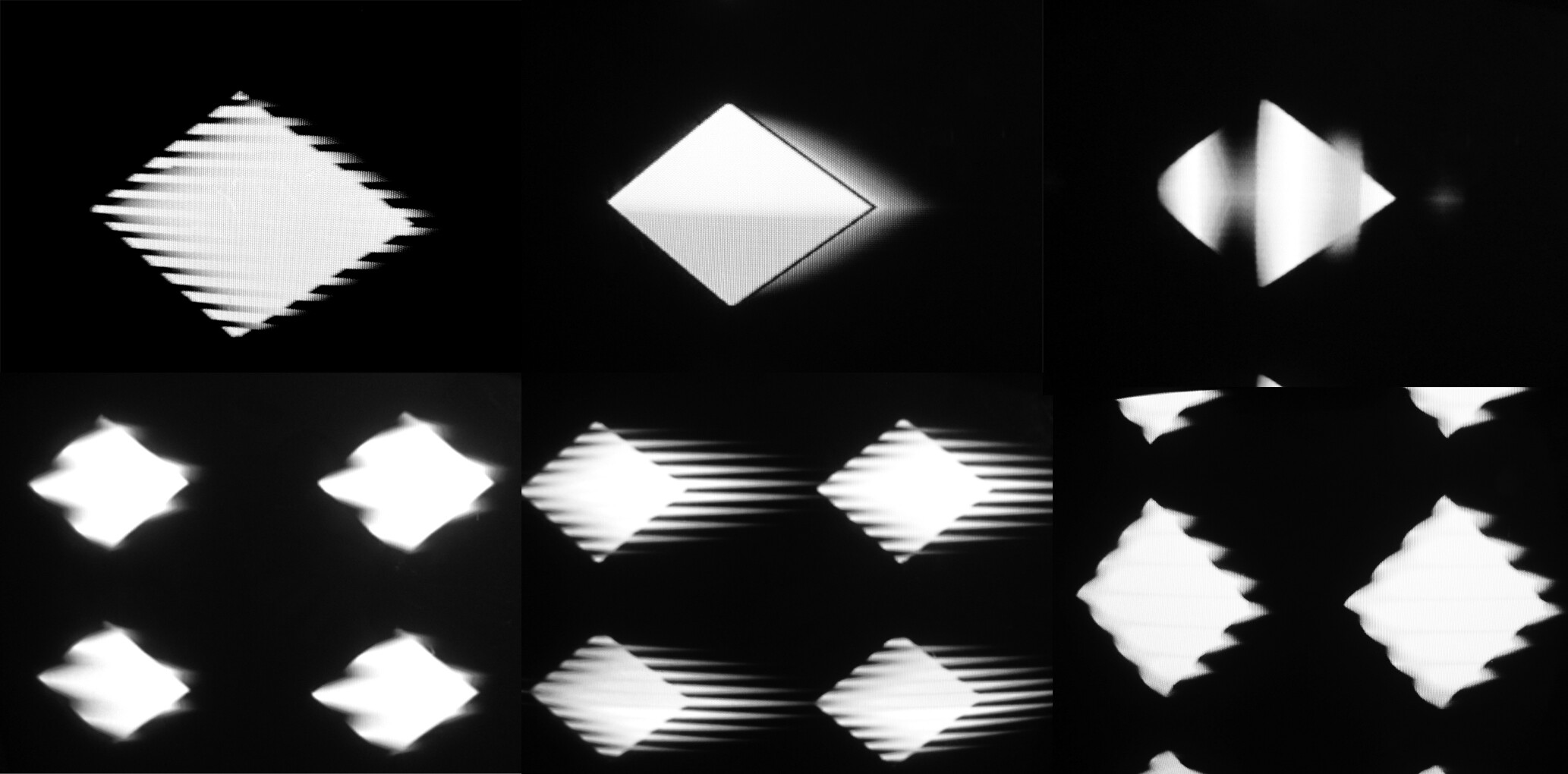

Shape effects with Keyed shapes with a VCO on the CV , horizontal, vertical, triangle and squarewave

shape effects

#4 — jwsmithwick1 · 2022-07-07

Looks great! I’m interested in purchasing 2 built modules.

#5 — stith · 2022-07-07

Interested in a PCB set!

#6 — Robbertunist · 2022-07-08

I’d definitely like a PCB & Panel set please. @VanTa & @cinema.av, how about ye guys? A Berlin group buy?

#7 — joem · 2022-07-08

Sign me up for one PCB set, please!

I’ve been putting off an item on my to-do list that is to design basically this exact module. So this saves me the work. Haha.

#8 — Rik_bS · 2022-07-08

I’ll hold off for now, but probably order when XFADE is released (gotta collect them all!)

#9 — reverselandfill · 2022-07-08

Ordering some dpdt sub-miniature pcb mount switch soon, for the XFADE (I did not know they are hard to get, so bear with me).

#10 — VanTa · 2022-07-08

si! por favor

muchas gracias

#11 — Robbertunist · 2022-07-09

Cinema.av told me he’d also like one. 2 other people here as well so count me in for 5x PCB and Panel sets.

#12 — Danyel · 2022-07-10

I’ll take a built one

#13 — Imbadlypoisoned · 2022-07-10

you can count me for 5 pcb/panel.

#14 — reverselandfill · 2022-07-11

the pcb sets are ready to ship. I’ve send out PM’s

The build ones need a few parts that I’m ordering now. (LT1251 & trimpots)

#15 — AladinB · 2022-07-12

reverselandfill wrote:

Module: 160,- euro

I will take one built module please

Best wishes,

Aladin

#16 — reverselandfill · 2022-07-12

jwsmithwick1 3x module - shippedrobbertunist 5x pcb - shippedjoem 1x pcb - shipped

Danyel 1x module contacted Imbadlypoisend 5x pcb set - shippeddubpixel 3x module shippedAladinB 1x module shippedstith 1x pcb set - shippedlimpasen 1x module shippedallthesixes666 3x pcb - shippedBittahwizard 1x pcb - shippedimageofsin 1x pcb - shippedjsonpayload 2x modules shipped

Kent 1x kit contacted

#17 — dubpixel · 2022-07-12

My error- should be 3x for me if possible.

#18 — Limpasen · 2022-07-13

reverselandfill wrote:

Module: 160,- euro

Brilliant. I would like:

Module: 160,- euro

Cheers mate.

#19 — allthesixes666 · 2022-07-13

Hi, looks super-cool!

I’d like three PCB sets, please

And if there’s any other UK people interested - happy to do a mini-group-buy…

Thanks!

#20 — BittahWizard · 2022-07-15

If there are any pcb sets left, I’d like one

#21 — Analogmonster · 2022-07-15

How long until xfade is ready? Maybe I should pay for blur now and wait for delivery until xfade is ready, don’t want to miss out on blur

#22 — imageofsin · 2022-07-16

1x PCB set for me please

Thank you!

#23 — reverselandfill · 2022-07-16

the xfade is ready, just have to determine the price and make some pictures

#24 — jsonpayload · 2022-07-17

Would love two built modules, thanks! I’m in California

#25 — Kent · 2022-07-19

1 full kit, please. Located in Vienna.

#26 — reverselandfill · 2022-07-19

The parts came in today, I’ll start building tomorrow

#28 — reverselandfill · 2022-07-20

BOM updated to v3f

Building 9 modules progress: all resistors, diodes, ferrites done. tomorrow I’ll continue

#29 — reverselandfill · 2022-07-26

BOM updated again

I forgot the 78L05

module builds will be mostly finished today, I’ll contact all people on the list then

#30 — reverselandfill · 2022-07-26

Lots of BLUR modules calibrated and tested OK!

update: Buildguide and schematic posted on my site

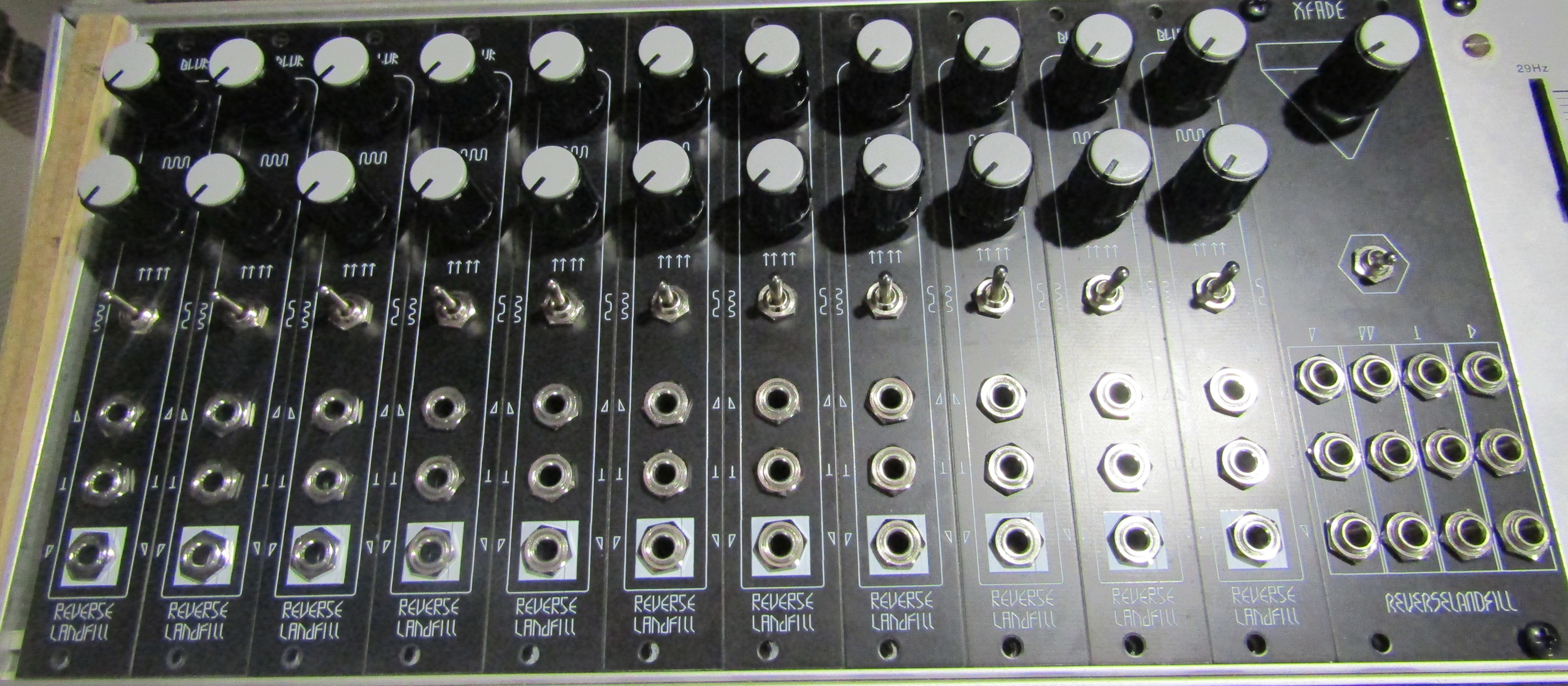

modules

#31 — phosphenes · 2022-07-27

patch them all in series, blur the blurring the blur

#32 — joem · 2022-08-10

Not sure if this is the right thread (or forum?) for support questions, but I’m working on gathering components for this, and I found a discrepancy between the build guide and the BOM/schematic so now I’m a little confused and want to make sure I’ll put the right components.

The BOM (v3f-2) lists the following 3 filter value capacitors:

designatorvaluedetailsc10220pF-470pF5mm film, filter value1c9820pF-2.2nF5mm film, filter value2c88.8nF-12nF5mm film, filter value3And the schematic (v3d-1) shows these values for these capacitors:

c8 = 10nF

c9 = 1nF

c10 = 470pF

(which fits in the ranges specified in the BOM)

But the build guide (v1-1) mentions the following about these capacitors:

C8: 470pF, C9: 1nF and C10: 10nF

(which has C8 and C10 switched when comparing to the BOM/schematic)

I’m not sure if the order matters for the switch circuity (I should be able to reason it out, but it was a draining day at work so my brain isn’t the freshest right now), so I wanted to check to see which is preferred or correct, if the order matters.

#33 — Fox · 2022-08-10

Hey Joem, I looked at the schematic and C10 is connected to the common pin of the switch so I believe that one should be the smallest value (470pF).

It definitely wouldn’t hurt to @ @reverselandfill just to be 100%.

#34 — reverselandfill · 2022-08-10

Fixed!. Thanks for spotting this!

updated BOM & Guide 10-08-22

the guide has new pictures added (switch soldering and jack tabs explained)

Note: On the panel, the jack holes and the potmeter holes are not in the same horizontal position.

This is to correct the height difference of the jacks comparated to the potmeters

(about 1 / 1.5 mm)

#35 — hewed · 2022-08-14

I’d like to get 2x PCB/Panels. Are there still some available, @reverselandfill?

#36 — reverselandfill · 2022-08-16

Kent 1x kit shippedHewed: 2x pcb panel - shipped

#37 — Pollock · 2022-08-27

Hey man,

2 x pcb and panel for me if there are still any left.

Cheers

#38 — scanner666 · 2022-08-29

I’d love a built one if they’re still up for grabs. I’m in Thailand and have had stuff shipped here before so it’s doable. Cheers!

#39 — reverselandfill · 2022-08-29

The first batch is all gone,

I’ll order new pcbs and post here when they are available again!

#40 — Pollock · 2022-08-31

Sweet cheers man. Much appreciated

#41 — reverselandfill · 2022-09-20

New pcbs will arrive at the end of this week

#42 — reverselandfill · 2022-09-22

note that the BOM is updated to BLUR BOM usersv3i.pdf

make sure you use a 3way switch (on-off-on) to get all 3 possible ranges

#43 — reverselandfill · 2022-09-22

New pcbs are in stock!

#44 — mjlong · 2022-10-03

Howdy! I’m interested in 2 pcbs for the Blur and 1 pcb of the 3Trins to LZX adapter, if it’s possible to combine shipping.

#45 — bentoncbainbridge · 2022-12-21

may I buy a built BLUR?

#46 — reverselandfill · 2022-12-21

Yes you can! (I send you a message)

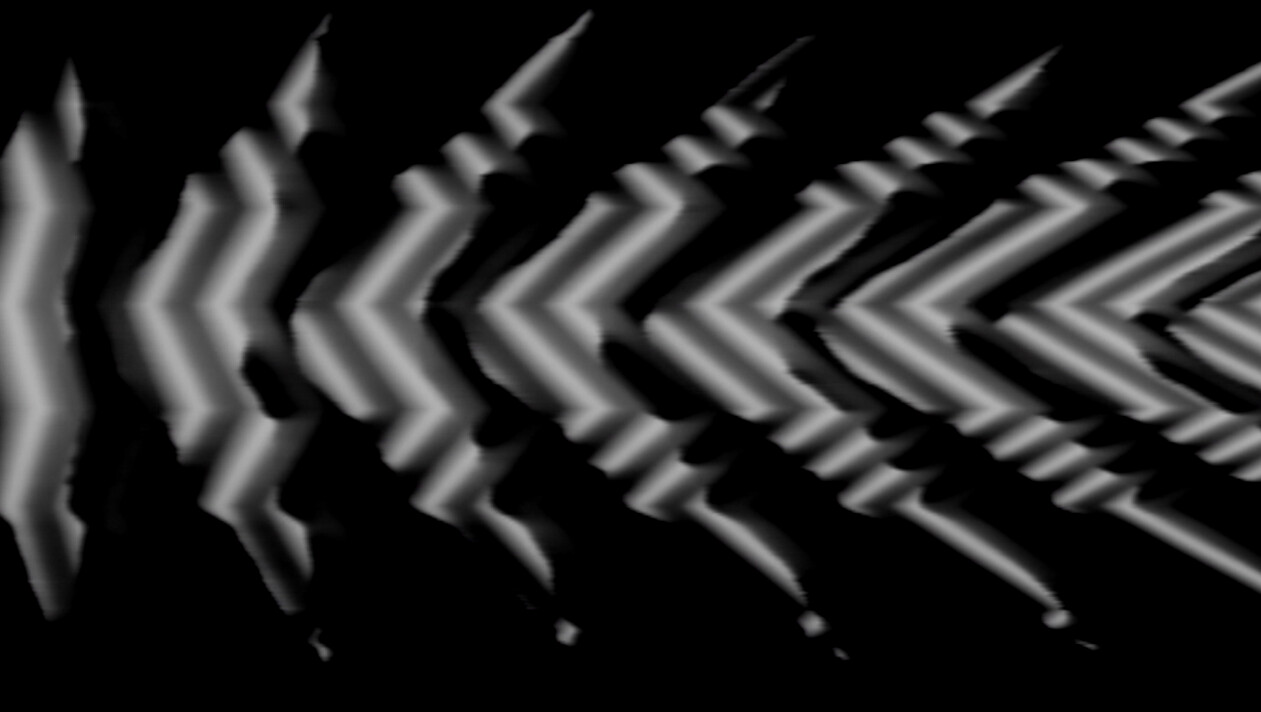

New screenshots: (a tutorial patchguide is being developed)

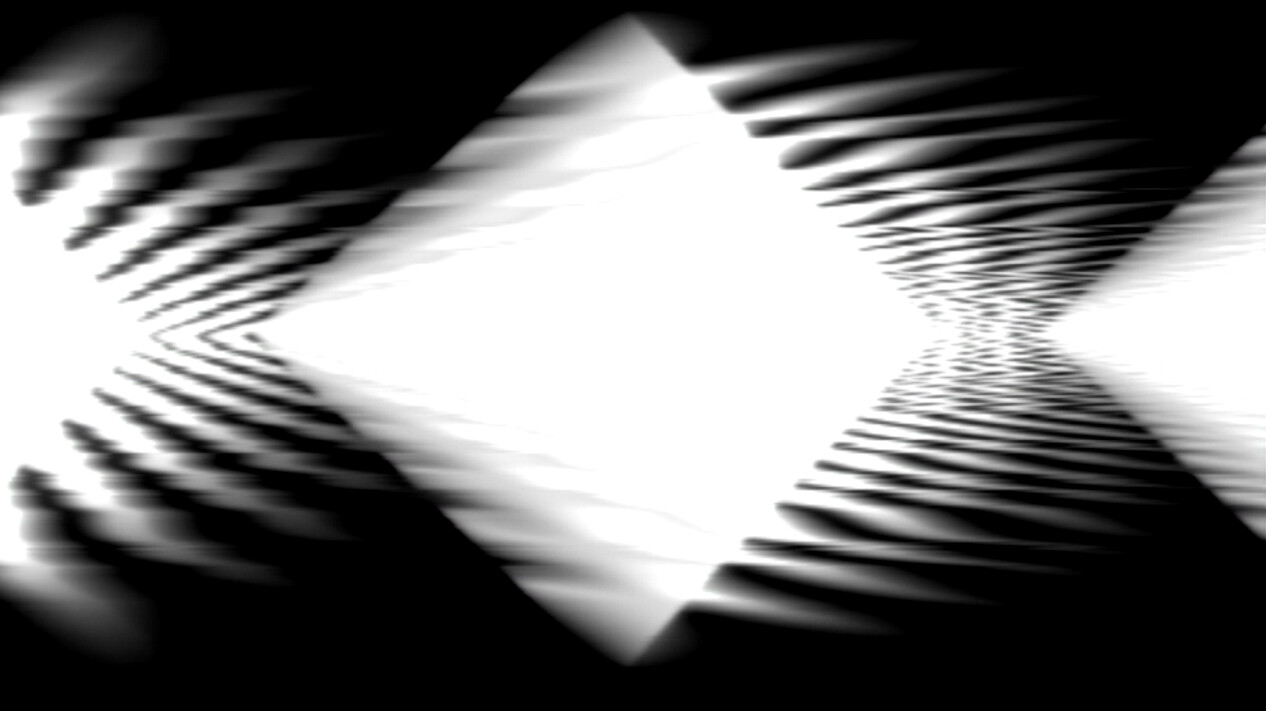

Shape synthesis (a patch with 2 VCOs, a Hardkey generator and a Ramps)

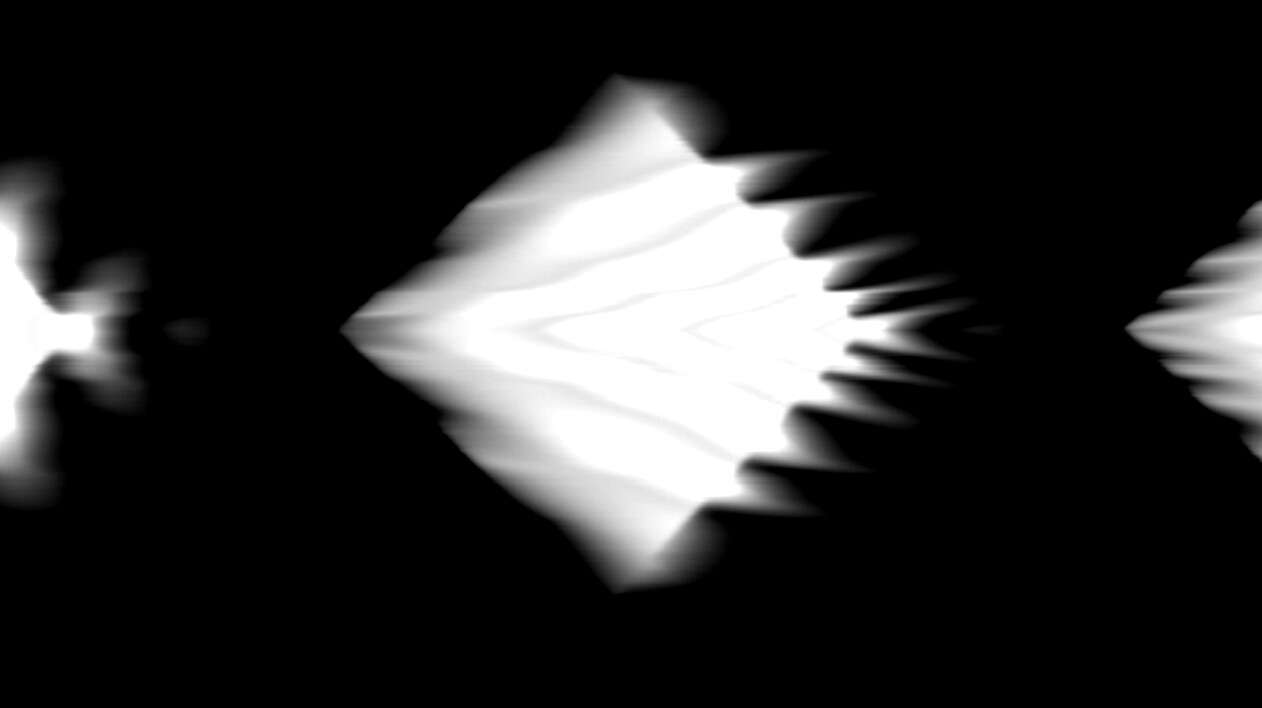

Strange keying effects: (a patch with a Hardkey generator and feedback)

#47 — reverselandfill · 2022-12-23

Standalone BLUR test:

The BLUR module can be used as standalone video effect

some remarks:

At extreme blur settings you lose sync (this can be adjusted with a smaller capacitor value at c8)
The gain setting is too high, this should be adjusted with other resistor values at r18 & r28
The CV input will also be unsynced, so it will scroll.

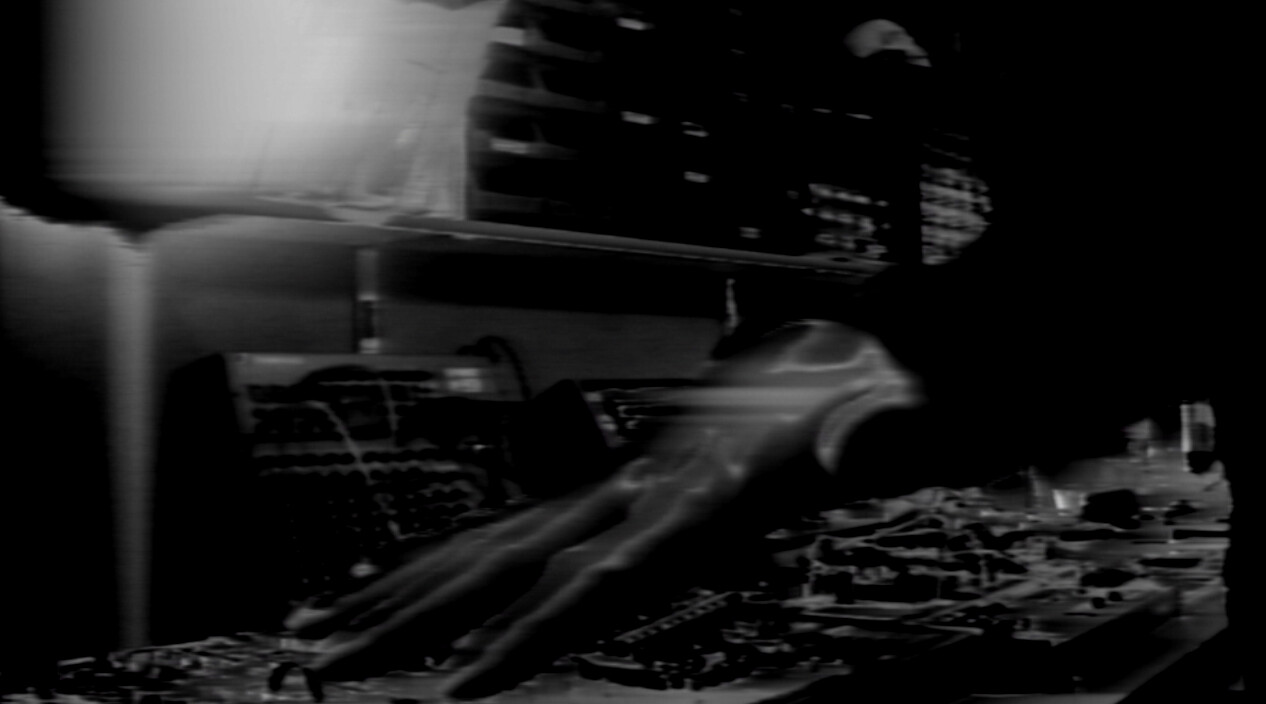

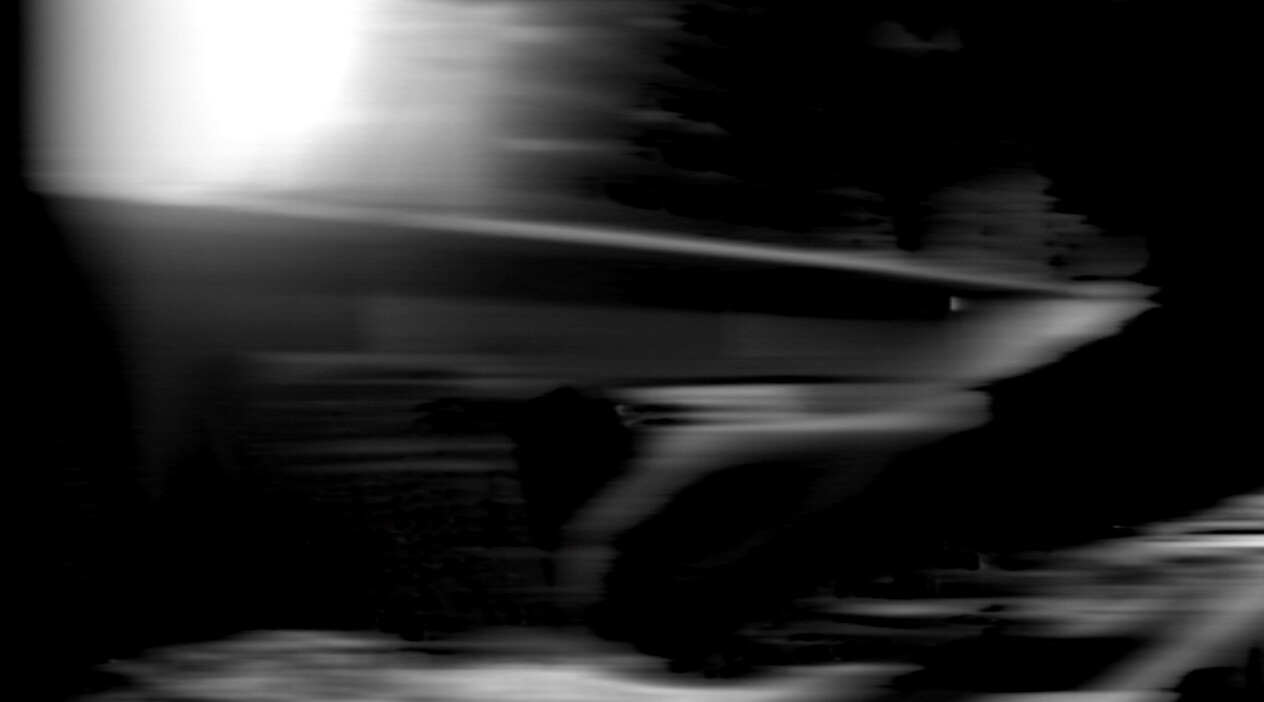

If you use the same source and add some variations to it, you can get nice results.

image changing effects such as keying & highpass filters / edge enhancers work really good:

the results are partially blurred effects and shifted patterns.

I’ll post some screengrabs later!
