Is there an easy way, to bring these Polygogo Forms onto a monitor without using an oscilloscope and without structure? Literally, I am asking me how I can bring one Output of the Polygogo on a vertical-line level….
#2 — rempesm · 2023-01-13
Aim a camera at its display and plug the camera’s output into a monitor.
#3 — Robbertunist · 2023-01-13
If you’ve got a Polygogo @dzu24, could you please take a photo of the back of it & post it on here. I’ve tried the Polygogo & Schneider’s Laden here in Berlin & thought “it’d be cool to see the visuals on a screen” but I’m sure I’ve read somewhere that there’s no effective way to do it except for pointing a camera at it as Rempsam suggests above.
If someone had a Visual Cortex or Vidiot, they could then process the camera’s output thru their system which would be interesting, especially with Memory Palace thrown into the chain.
#4 — pbalj · 2023-01-14
a stroke-to-raster converter
#5 — prakodr · 2023-01-15
How about this? Use a usb or audio based computer oscilloscope (rather than a ‘real’ one) and do a screen capture or output live via hdmi and convert.
#6 — jwsmithwick1 · 2023-01-15
How about scaling down the x and y outputs to 0-1v and running them through an LZX cyclops and into a laser?
#7 — Robbertunist · 2023-01-16
From the product page:
“Animate the spectrum
Polygogo is a stereo oscillator. The output channels are derived directly from the X and Y pixel information, which means that both channels are slightly different most of the time.”
I’m curious how this will look, the difference that is rather than a clean 90° additional output of X, on an Oscilloscope that has X/Y functionality.
#8 — dzu24 · 2023-01-16
i do not use computers with visuals;)
#9 — dzu24 · 2023-01-16
sounds interesting, but no cyclops and no laser here;)
#10 — dzu24 · 2023-01-16

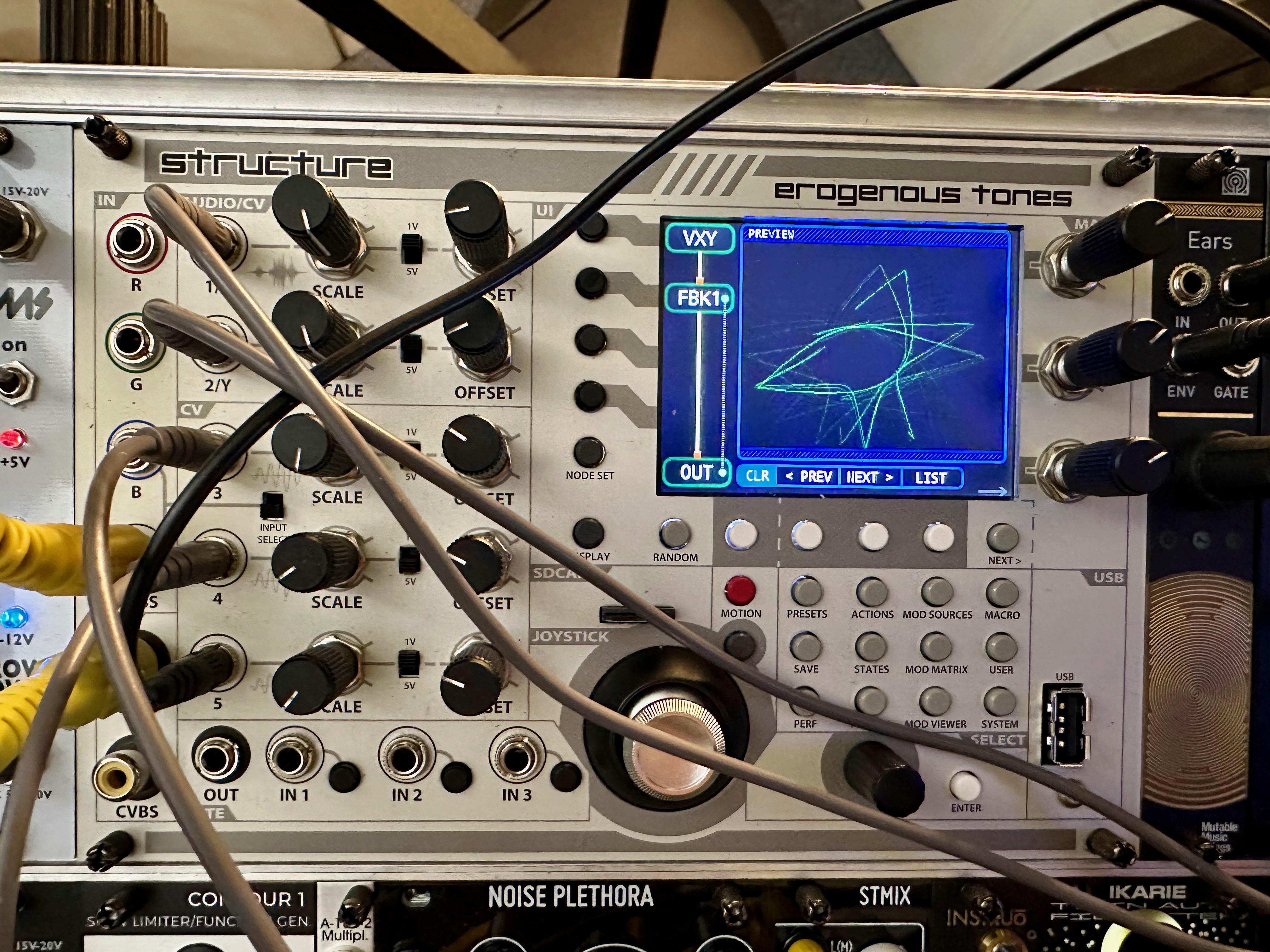

It looks fine on the oscilloscope. On the monitor of the module itself, there is more or less the same image than on structure (x/y-input) an on the oscilloscope. Oscilloscope ist by far the most fluent of course;)
#11 — dzu24 · 2023-01-16
i will check that as I have time to deinstall it…
#12 — Robbertunist · 2023-01-17
Great to see that you got your Polygogo’s XY Outputs working with Structure @dzu24

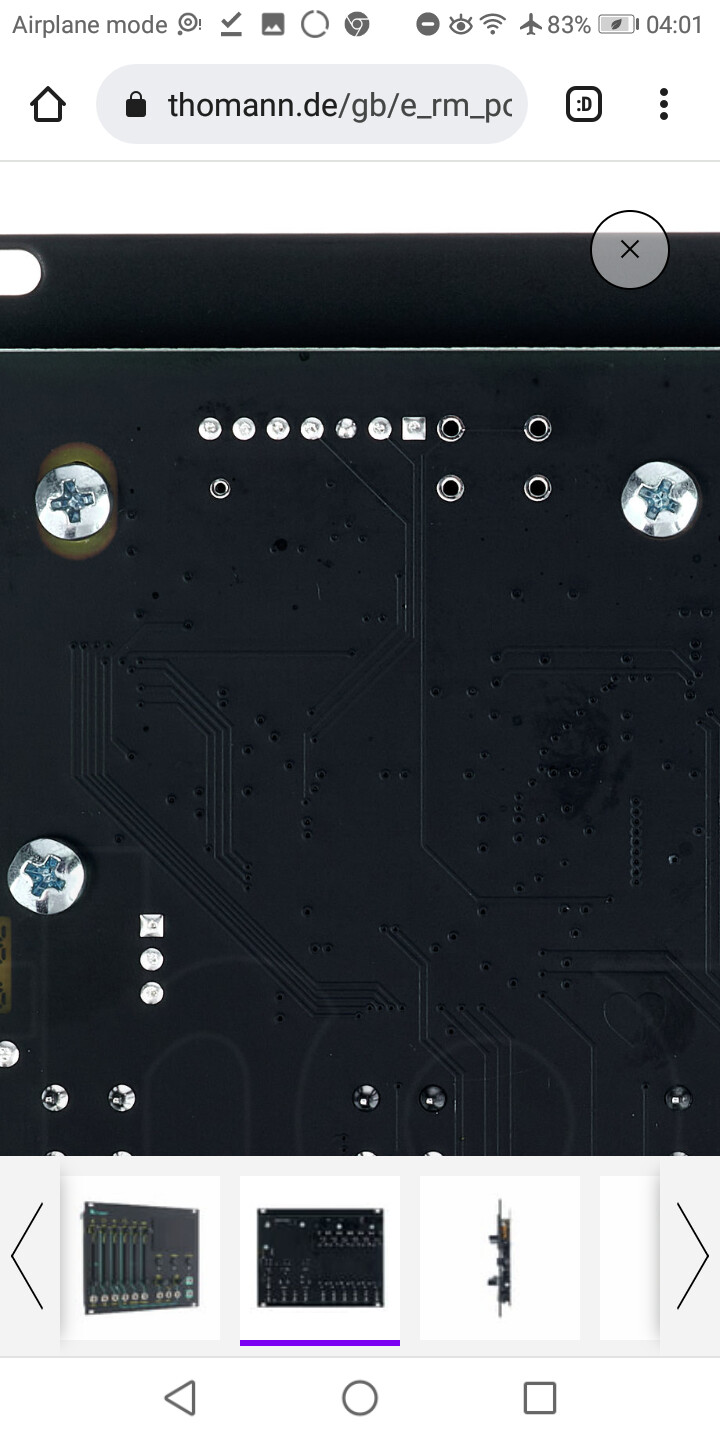

Yes I found a picture of the back of the module on the Thomann website. It looks like the screen is attached with 7 pins at the top & maybe 3 ppins at the bottom left (if looking at the back of module). The 3 pins might be an I2C interface & I found info about OLED displays with 7 pins, a multimeter would confirm the 3.3V line for instance but an Oscilloscope would be better for the rest.
