[WIP] DC Distribution Board, 4hp Sync Passthru/DC Input Panel, and 2or4hp 5V-1V Scaler
Category: Unknown · Tags: — · Posts: 9
#1 — Jesse · 2023-04-11
Heya LZX family,
Here be a few projects we’re working on:

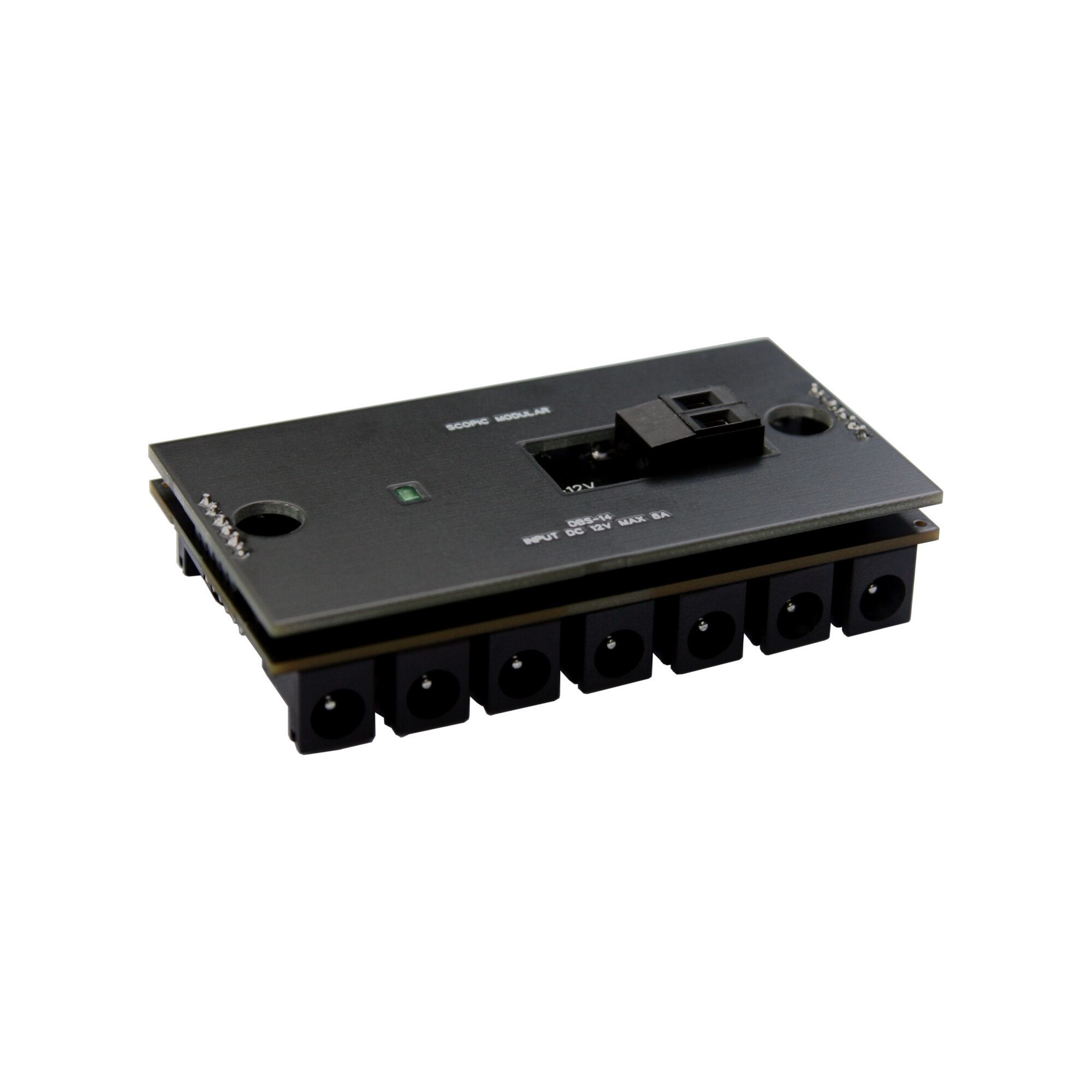

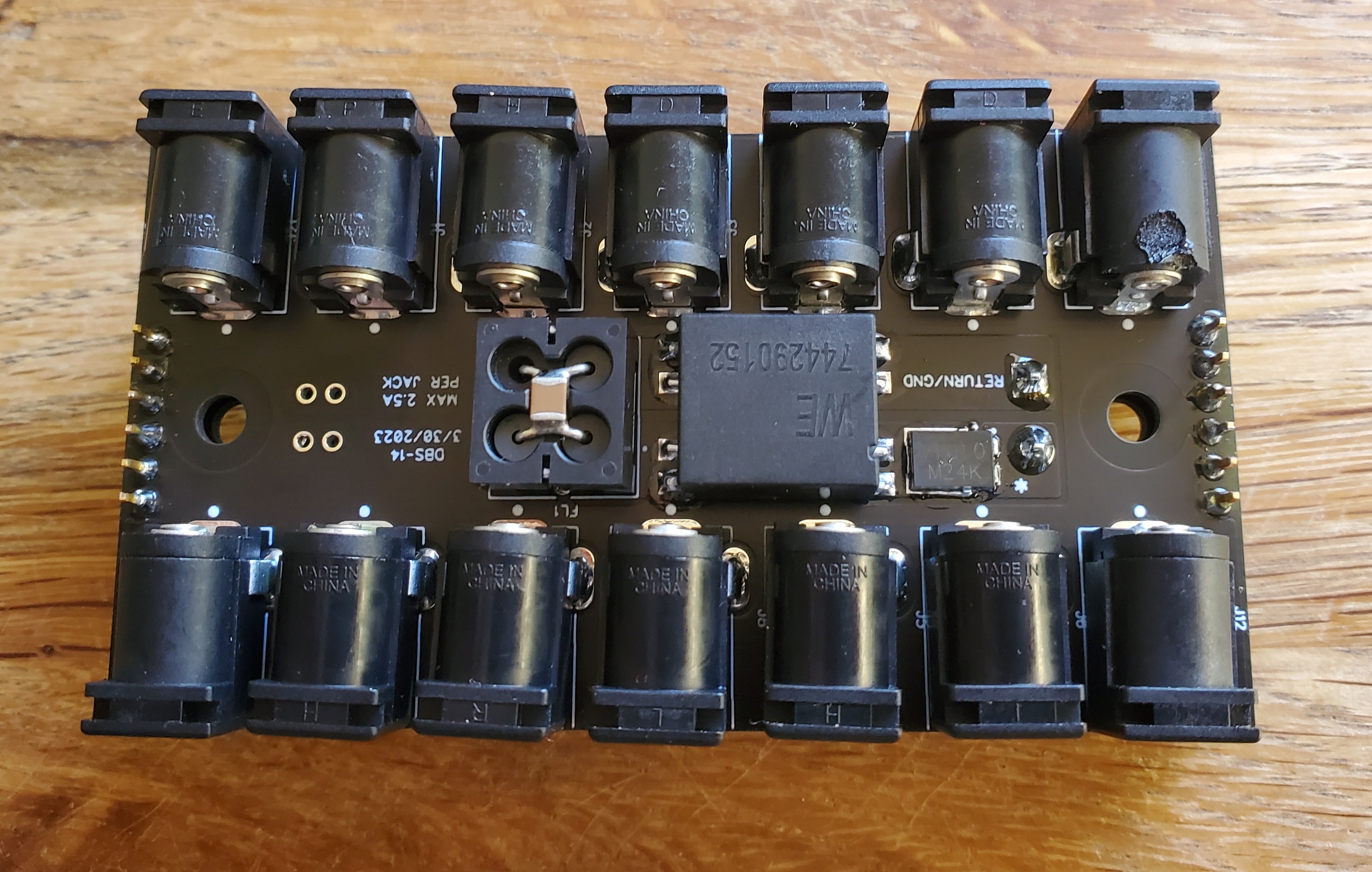

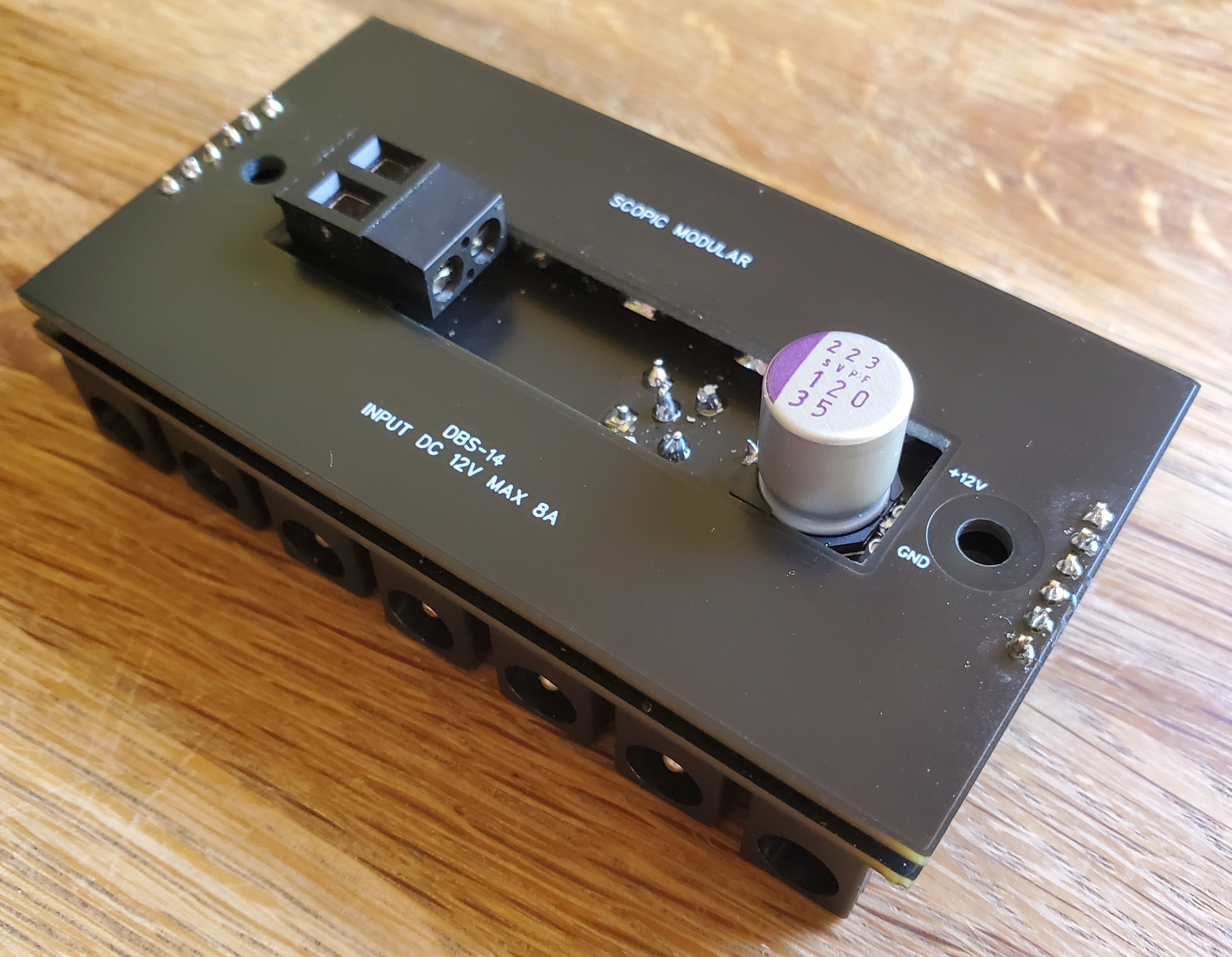

DBS-14
A busboard w/ 14 x 2.1mm DC Barrel Jacks for feeding those various Gen3 modules +12V power. Good for 8A [EDIT: 5A] (each individual connector is rated for 2.5A). Has some basic noise suppression bits on board for smoothing ripple & rejecting common mode noise - a big Wurth Common Mode Filter, Murata BNX-16, and a few big OS-Con caps. Reverse power protection, yeah.
Measures ~ 83mm x 45mm x 30mm. Same bolt/screw spacing as Capsule for the pair of mounting screws.
Has a little 2 port terminal block for direct wiring to whatever jack you may want to feed it from - or wiring it to our INX-1 Input panel.
We’re planning to offer these as a power option alongside an upgraded 14 connector Capsule variant in our cases. If you want to get an idea what our case system is like see Scopic Webstore

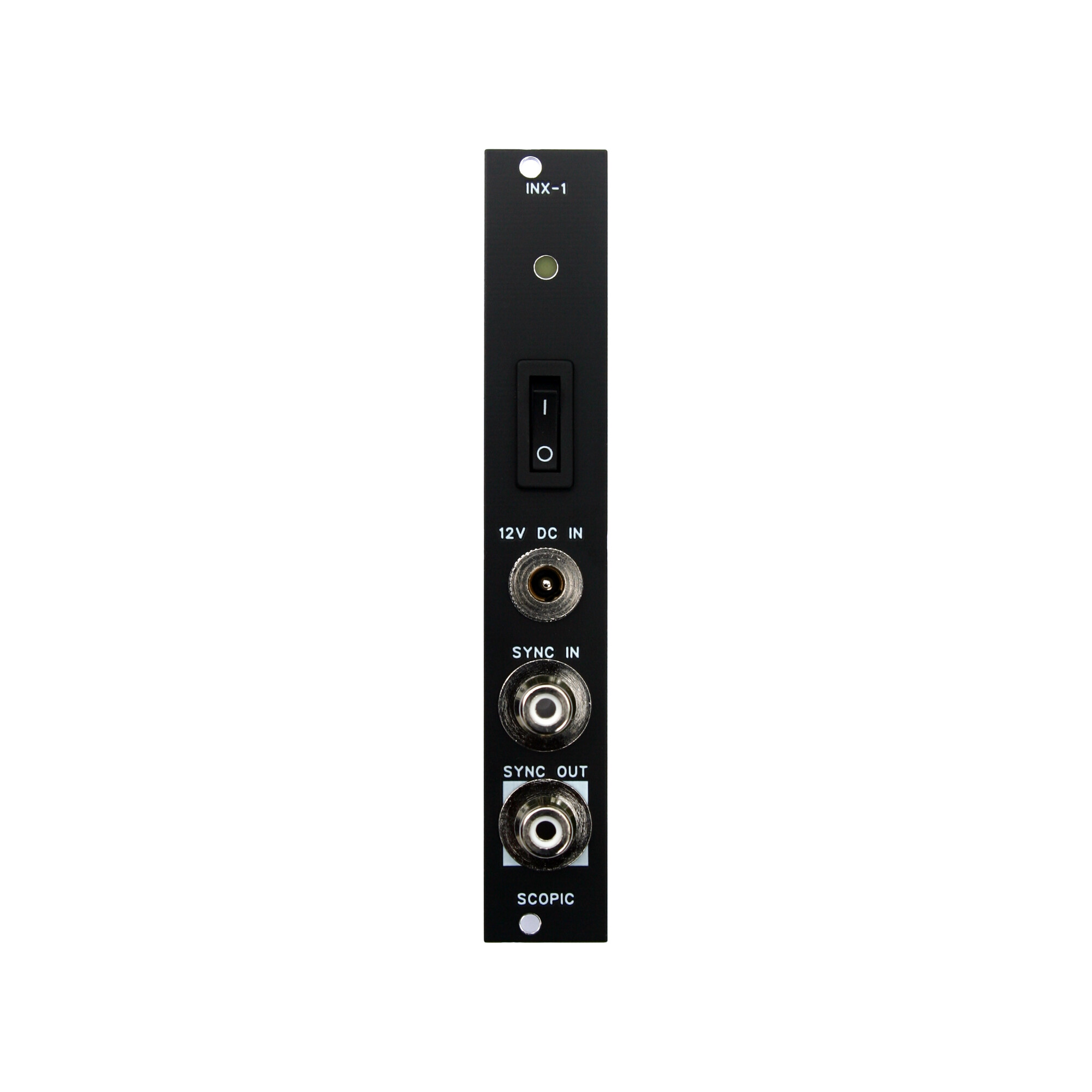

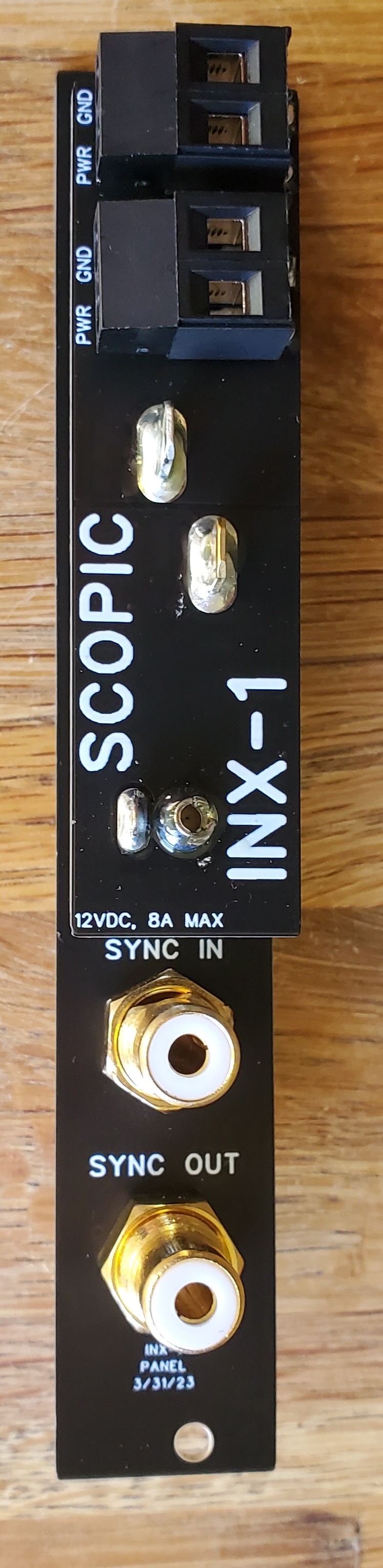

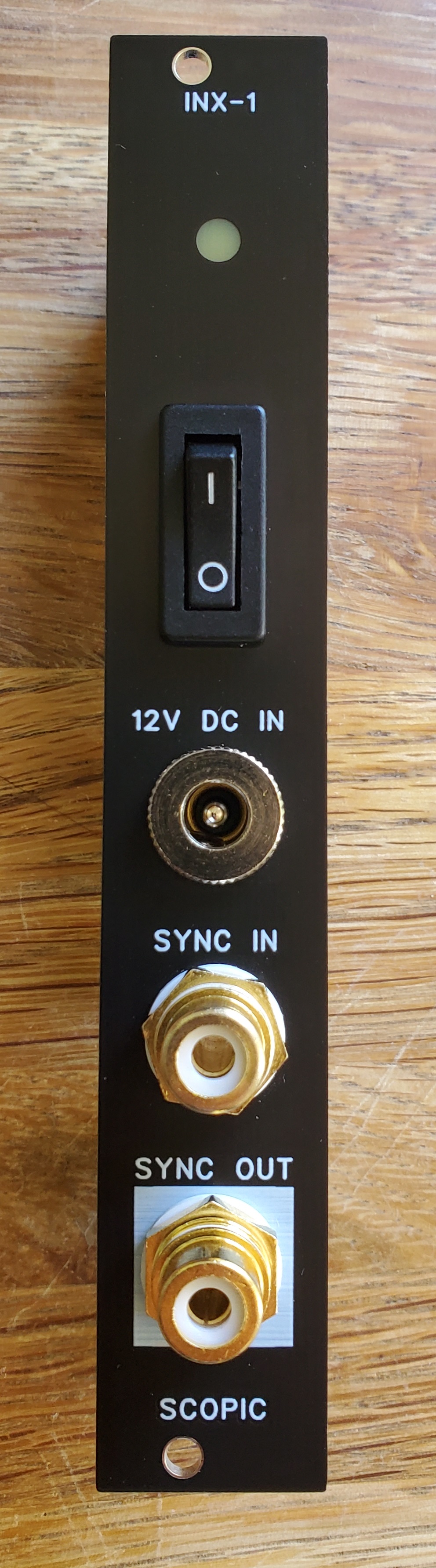

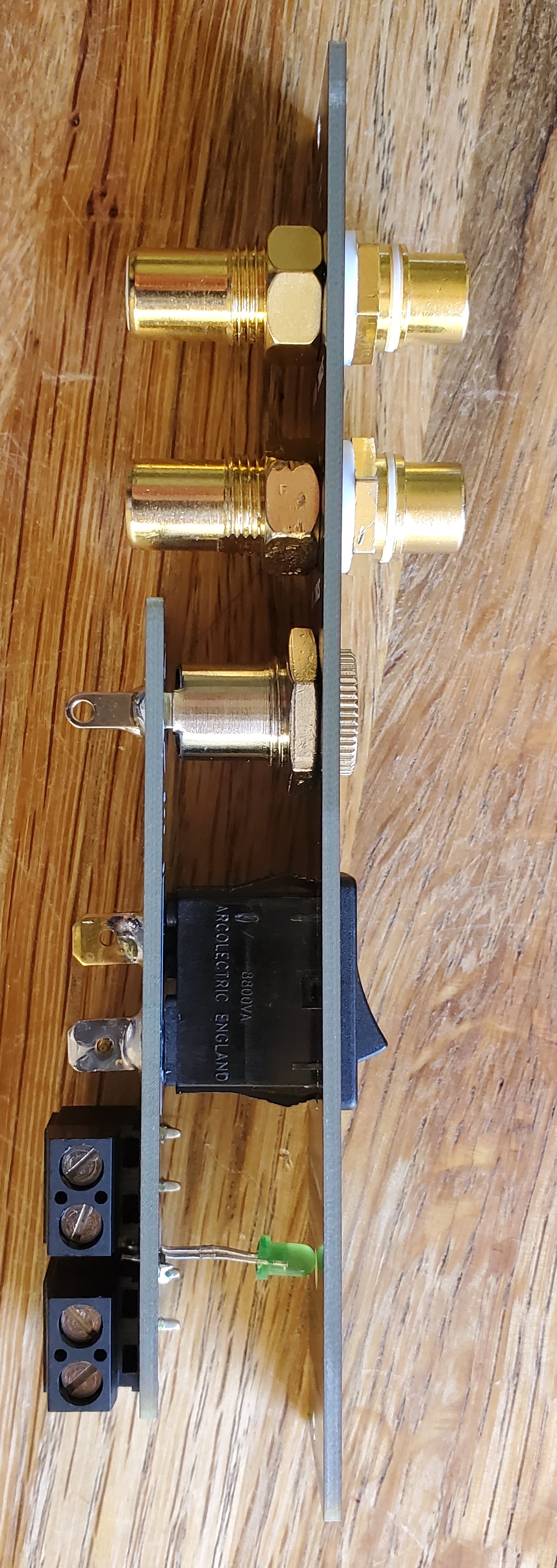

INX-1
4hp DC Input & Sync Pass-through module

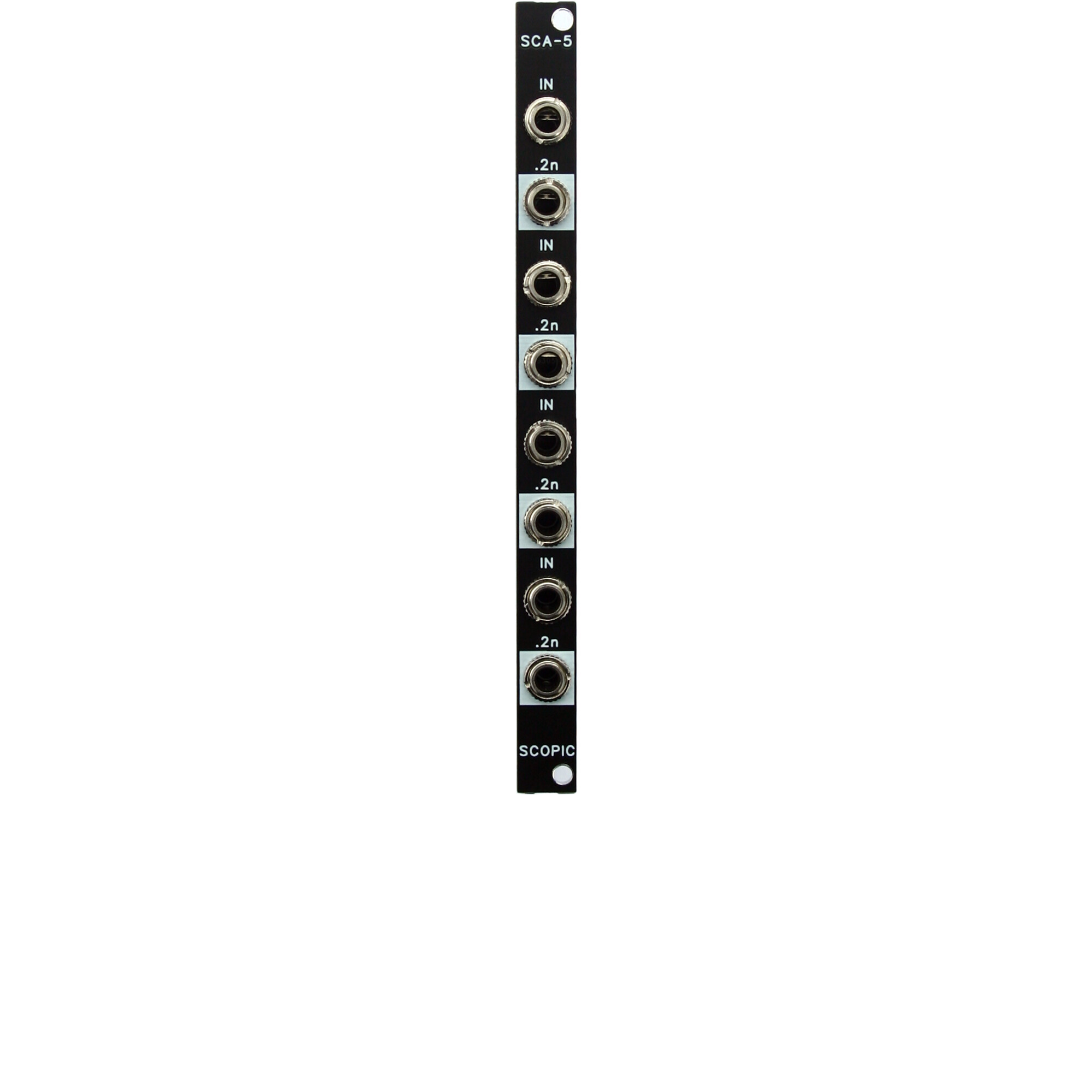

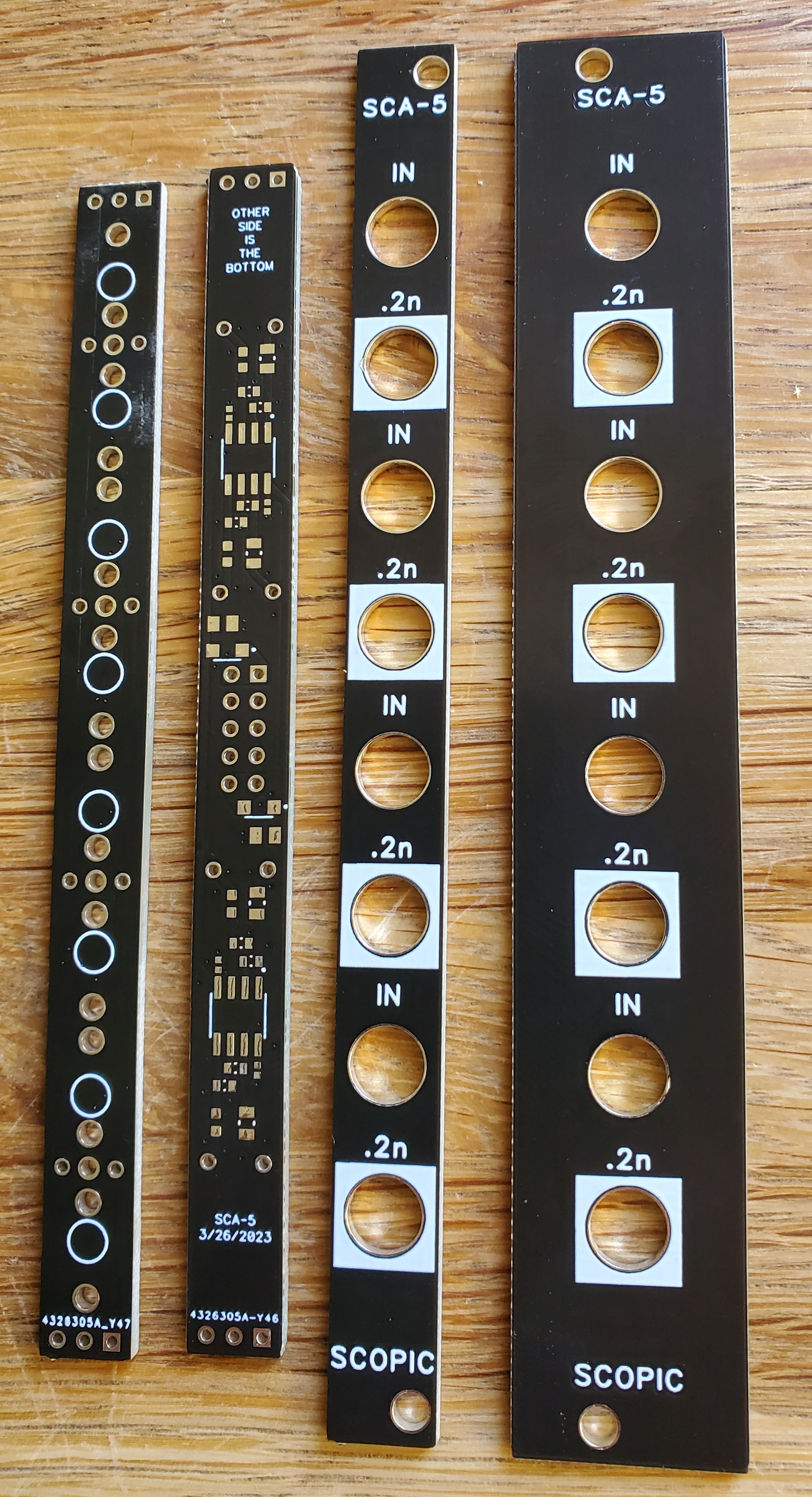

SCA-5
2hp or 4hp (your choice) 5V to 1V scaler
I’m going to redo the compo board because I figured out a better layout 1hr after ordering
Otherwise good to go.
Imagine we’ll do a little run of each, pending interest
#2 — creatorlars · 2023-04-12
These look really great @Jesse!
#3 — Marizu · 2023-04-15
Great thinking on the sync passthrough with the power!
#4 — raster-fari · 2023-04-16
Yes, awesome. I would like to register interest : )
#5 — Jesse · 2023-04-16
Sweet!
Ordered revised boards/panels yesterday so should have everything in stock in less than 2 weeks.
Skipped the 4hp scaler panel for now, seemed like a waste
#6 — raster-fari · 2023-04-16
nice one. you USA based?
#7 — Jesse · 2023-04-16
Yep, California for the moment
#8 — Jesse · 2023-05-05
These are now available on our website for purchase.
Made a few small changes, as you can see the cap on DBS relocated to the bottom & INX got some different RCA jacks.
I previously quoted INX-1 as being 8A max input, the Switchcraft jack only handles 5A so take note of that.
DBS-14 $90
INX-1 $80
SCA-5 $80
#9 — Jesse · 2023-05-26
Looks like our link was broken - its www.scopicmodular.com
