Chromagnon Z voltage

Category: Unknown · Tags: — · Posts: 9

#1 — dryodryo · 2023-09-24

Heyo, a little bird told me that Chromagnon will have some kinda rear panel switcheroo for vector output voltage range. What range will be supported? I have an oscilloscope that expects a 30 V input on the Z intensity channel. Wondering if I should keep it around or purge it.

Thanks

#2 — Z0NK0UT · 2023-09-27

There is trim pot access on the front panel to adjust the Z output from 1 to 5X gain. You might want to try it with your scope before getting rid of it.

#3 — Vdot · 2023-09-27

Z0NK0UT wrote:

l to adjust the Z output from 1 to 5X gain. You might want to try it with your scope before getting rid of it.

I’ve been staring at the Chromagnon render for 3 years now and had never noticed the trim pots until now.

#4 — dryodryo · 2023-09-27

Thanks Chad. I’m not seeing that trim pot on the front panel legend. So it tops out at 5V? That would be OK in conjunction with a Cadet 1:5 scaler, except that AFAIK nothing in the Eurorack or LZX universes can go above 12V at all.

I will do some tests with what I have.

#5 — Rik_bS · 2023-09-28

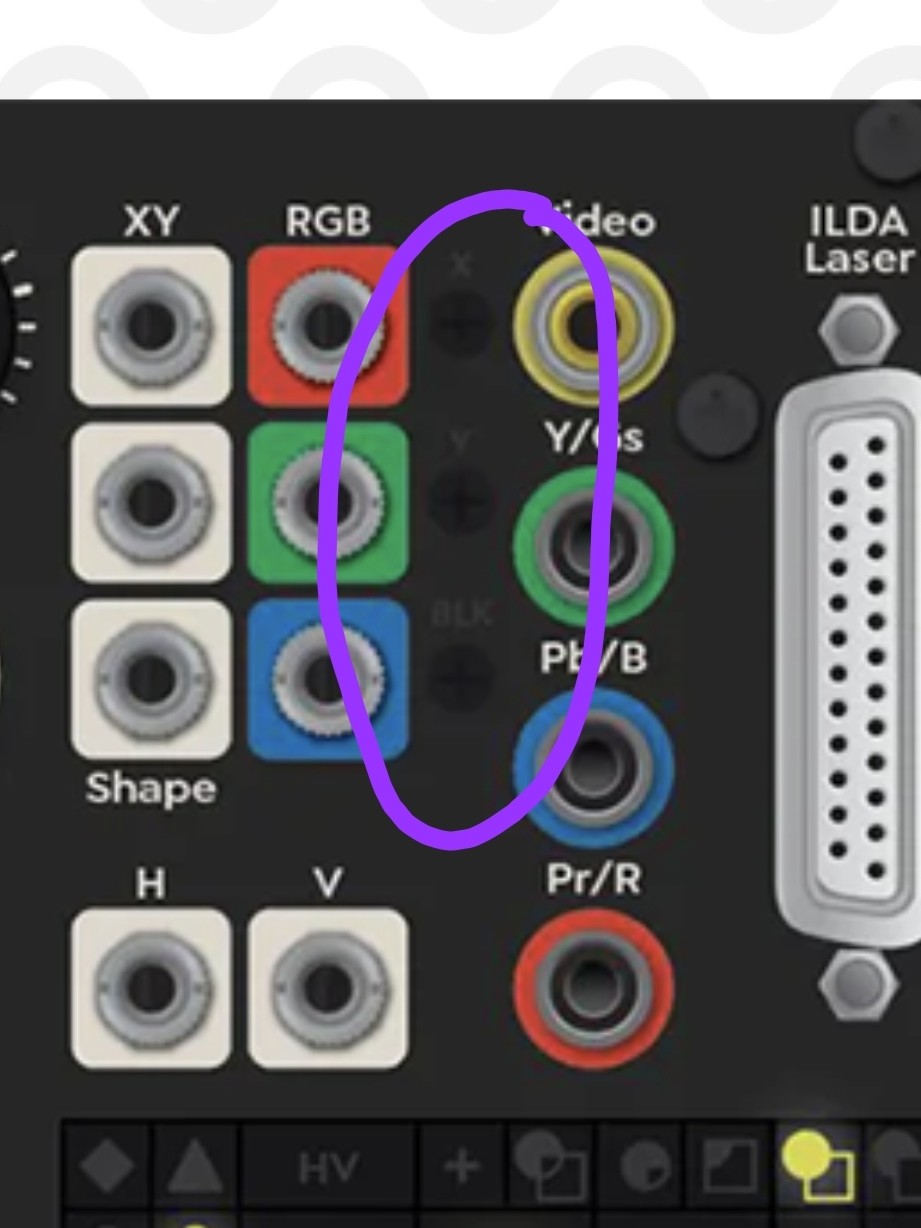

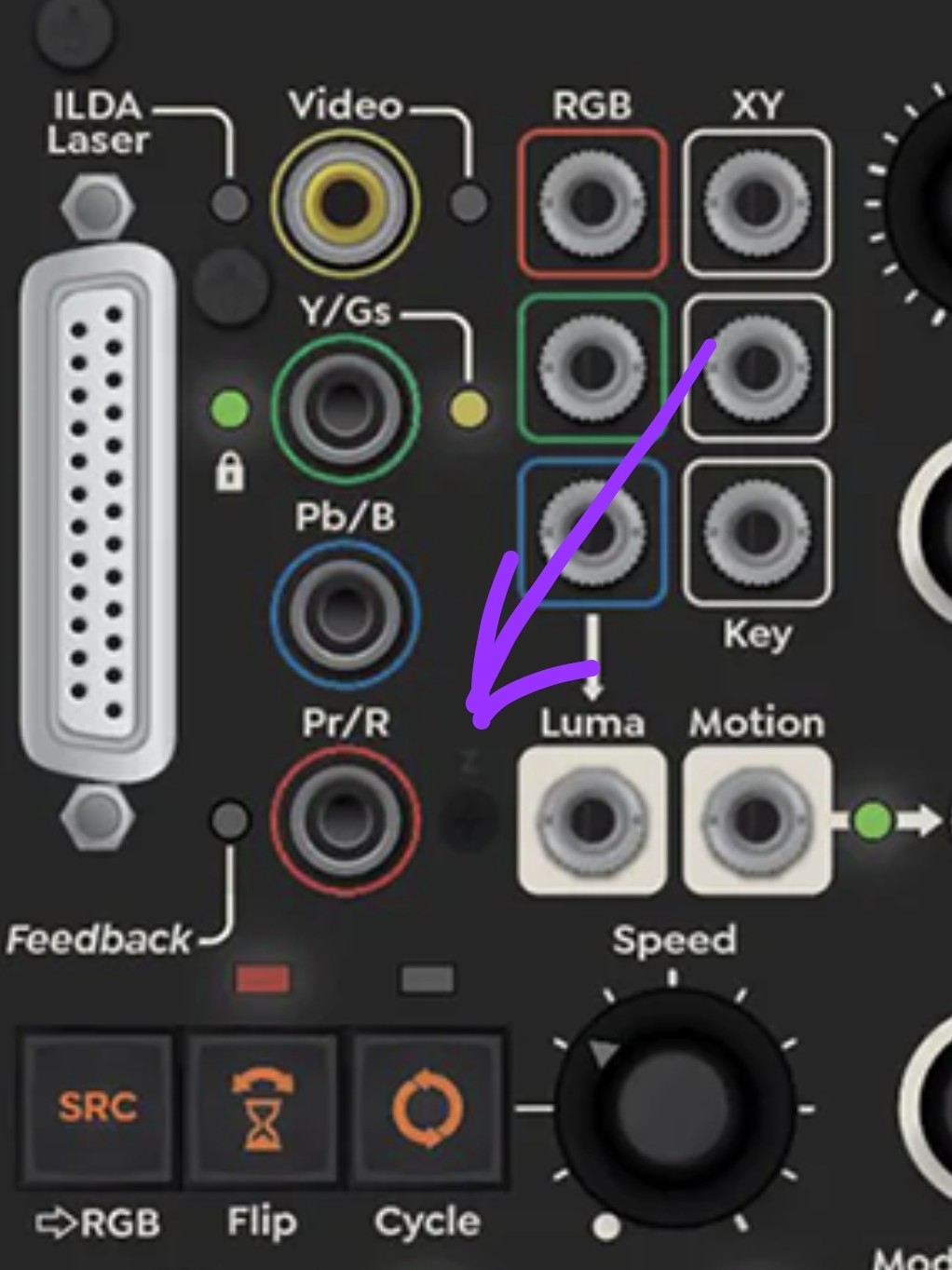

I believe these are all trimpots that have been mentioned in distant discussions about features…

#6 — dryodryo · 2023-09-28

Thanks Rik. Those are invisible.

#7 — pbalj · 2023-09-28

are you sure its 30V full scale, and not 30V maximum?

#8 — dryodryo · 2023-09-28

The user manual says “30v p-p minimum”. Maybe that’s a typo, and they meant “maximum”.

I know for certain that other models from the same manufacturer absolutely need a solid 5V (“TTL compatible”) in order to get full contrast.

But I’ll test it and see.

#9 — dryodryo · 2023-09-29

OK, the question is moot, because this scope is from the 70s and it’s too far gone. Not worth repairing, and I have three of the 5V models. So this is going to get recycled. Thanks
