Bus 168 DIY Kit

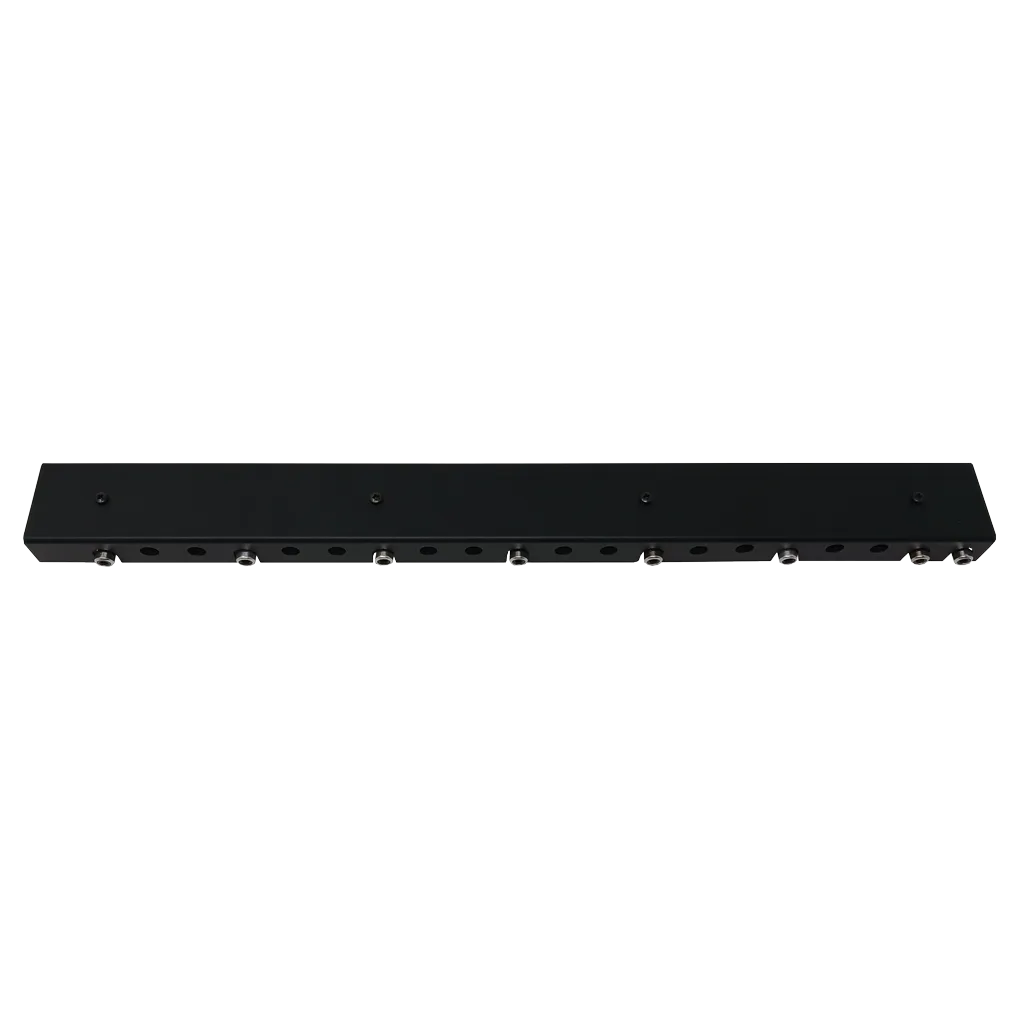

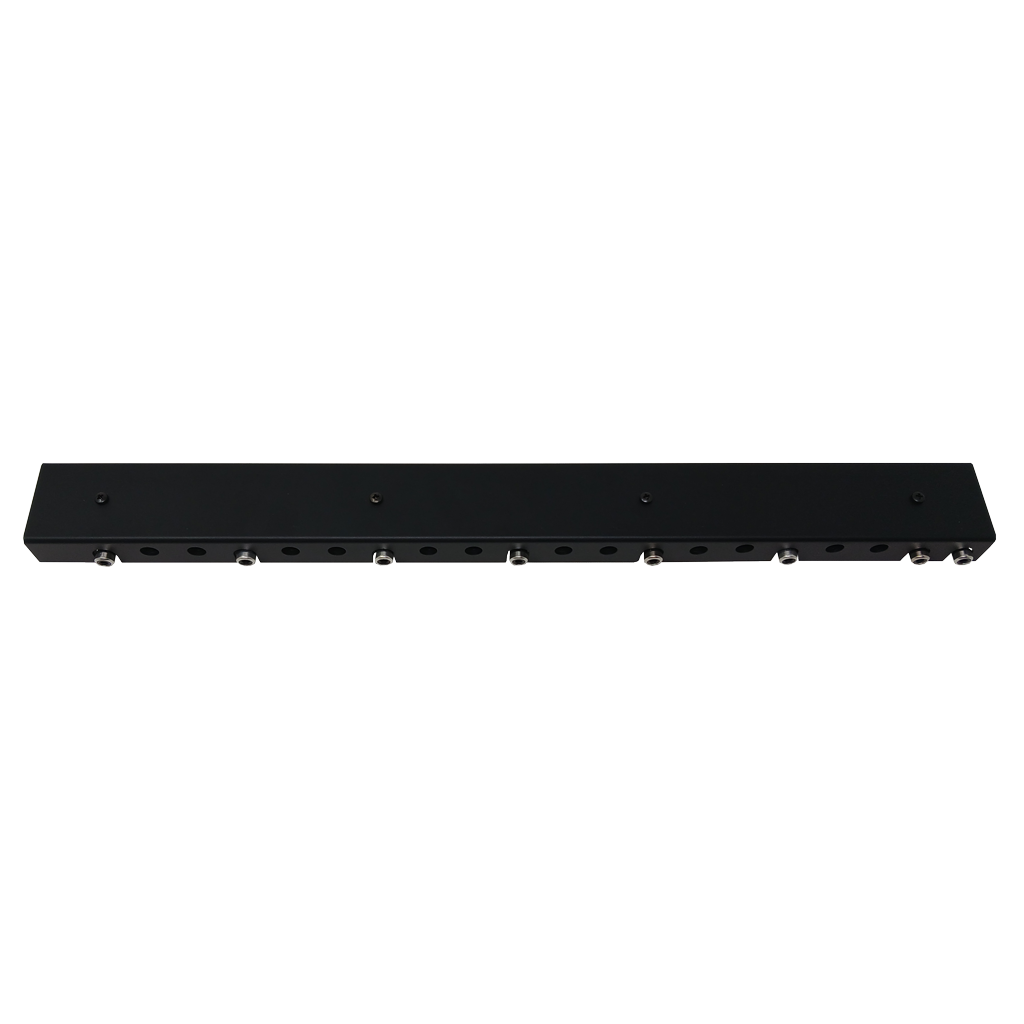

A DIY installed version of the power and sync bus board used in our Vessel 168 EuroRack case.

  • Screw terminal power entry supporting up to 10 Amps of current
  • 28 individually filtered 12V power output connectors
  • 14 individually buffered sync distribution outputs

Included in the box:

  • Assembled 168HP bus board with screw terminal connections for power input and power switch (optional).

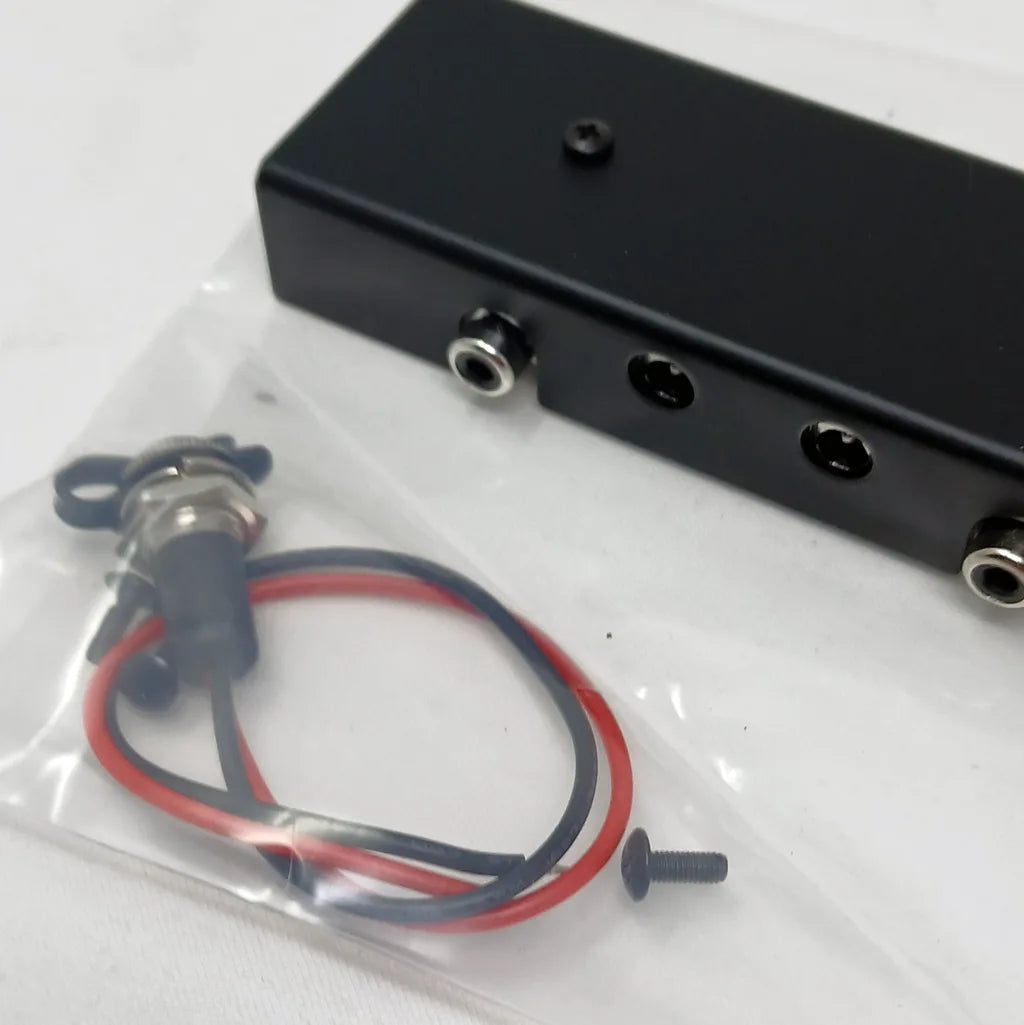

  • Chassis mount 2.5mm DC barrel connector with pigtail leads.
  • 4x M3 8mm mounting screws.

Not included:

  • TT Electronics PEAMD120-12-B2 12V 10A power supply w/EMI filtering and 2.5mm DC barrel connector

Notes:

  • As supplied, all you need to do is connect a 12V power supply and ground to the screw terminal marked for power input.
  • The mounting standoffs can be used with any M3 screws if the supplied screws are too short.  The four mounting locations are positioned 4.8 inches (24HP) apart.
  • Optionally, you may remove the jumper link installed in the screw terminal marked for power switch.  An external shorting switch may be used -- this connection is a remote control, so a high current switch or wiring is not necessary.
  • You should use a 2.5mm DC connector like the one supplied, if you're expecting to draw more than 3 amps through the bus board.

Dimensions

Width, 84HP
Mounting Depth, 20mm
