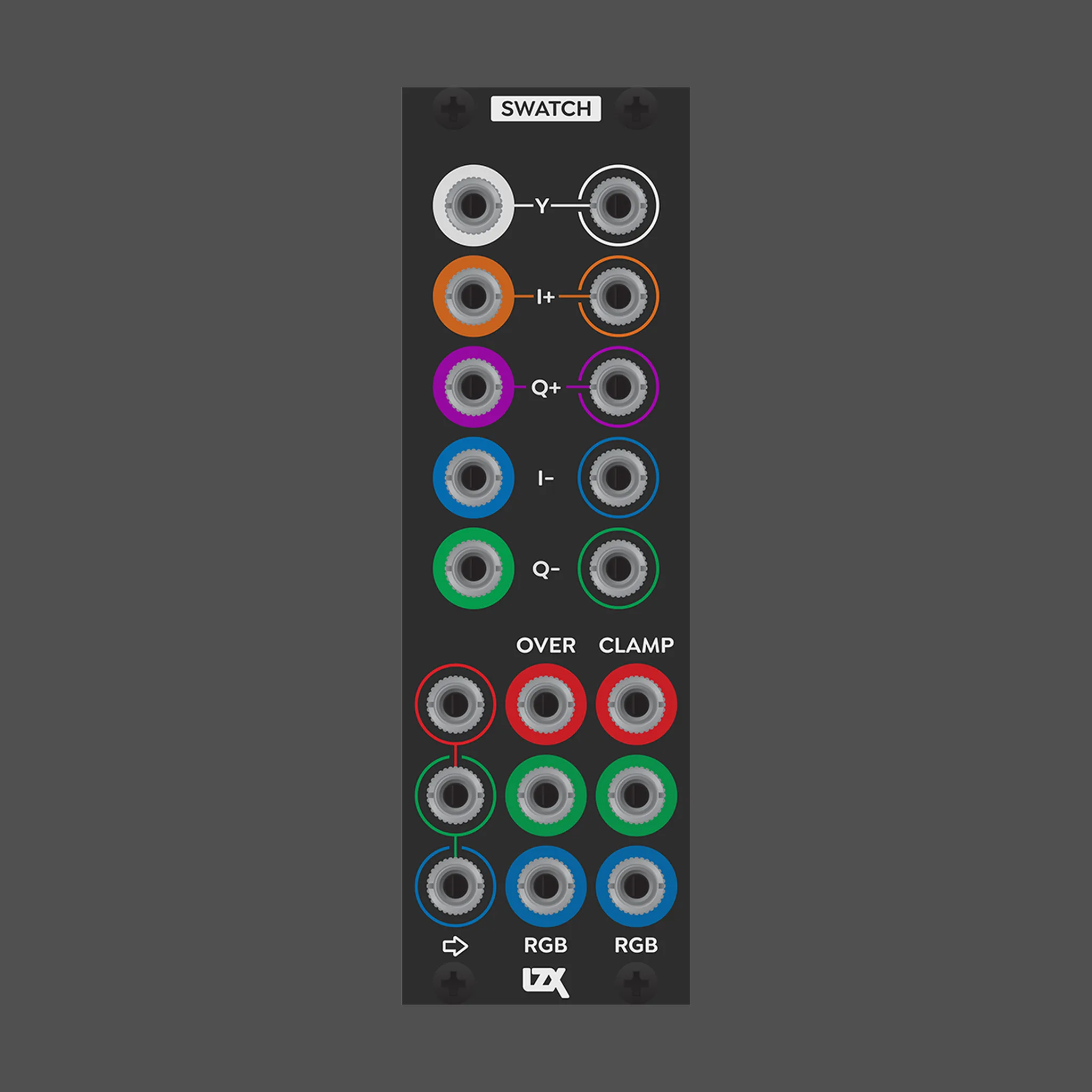

Swatch is a bidirectional color space converter with RGB-to-YIQ and YIQ-to-RGB functions.

Dimensions

Width, 8HP
Mounting Depth, 32mm

Power Consumption

+12V @ 100mA

Power Entry

Rear DC Barrel Jack
Rear EuroRack 16 Pin Header

Legend

J1

J2

J3

J4

J5

J6

J7

J8

J9

J10

J11

J12

J13

J16

J19

J15

J18

J14

J17

Connectors

J1

Y Output

J2

Y Input

J3

I+ Output

J4

I+ Input

J5

I- Output

J6

I- Input

J7

Q+ Output

J8

Q+ Input

J9

Q- Output

J10

Q+ Input

J11

R Input

J12

R Over Output

J13

R Clamp Output

J16

G Clamp Output

J19

B Clamp Output

J15

G Over Output

J18

B Over Output

J14

G Input

J17

B Input
