Reference Manual
LNK
Technical documentation, setup guidance, and patching workflows.

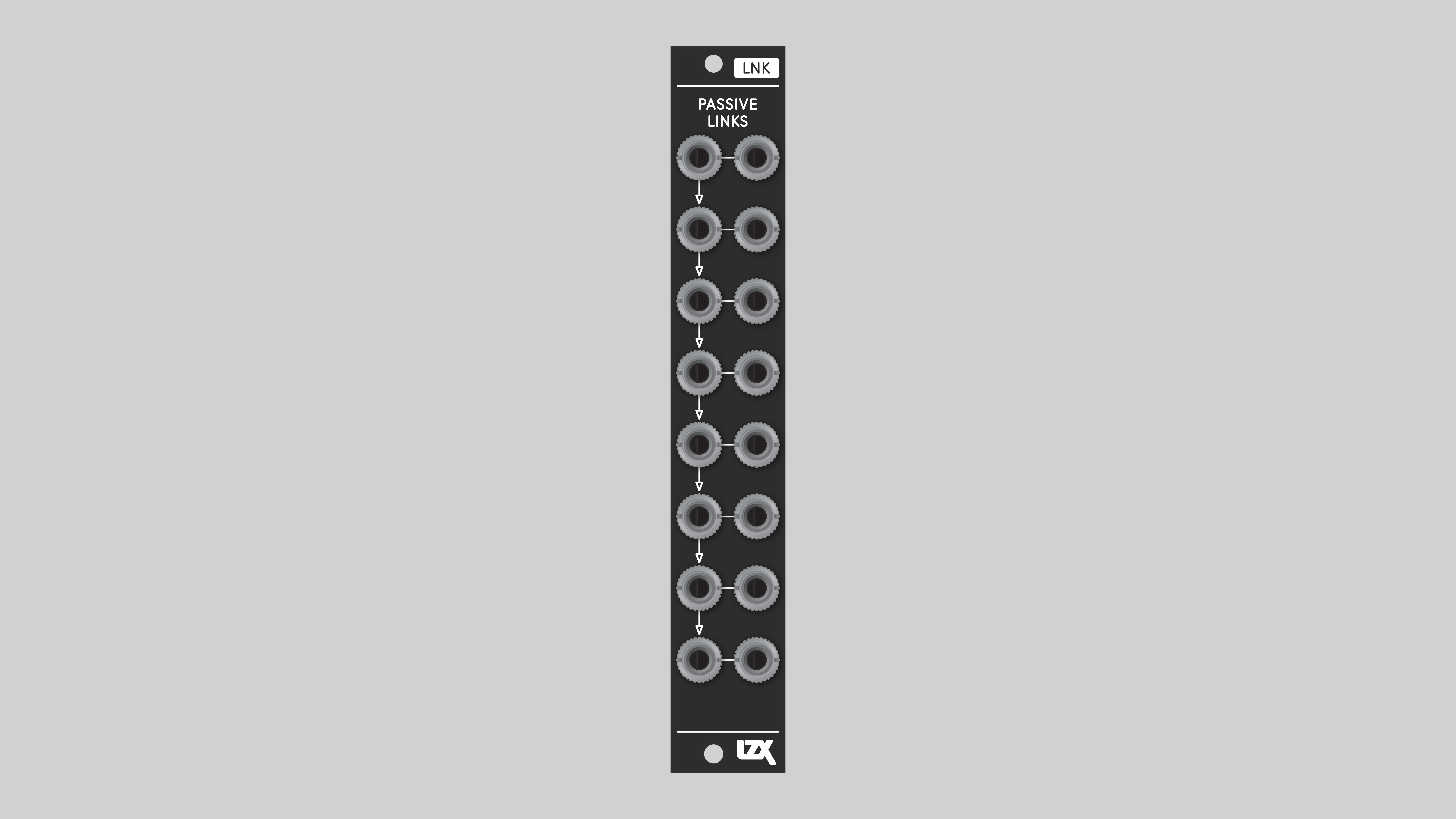

← Back to LNK overviewLNK
Passive Links
<!-- ## Overview -→
Key Specifications
| Parameter | Value | | ----------------- | ----- | | Mounting Width | 4 HP | | Power Consumption | None | | Power Connectors | None | | Video Sync | None |
<!-- == System Integration Advice
-→

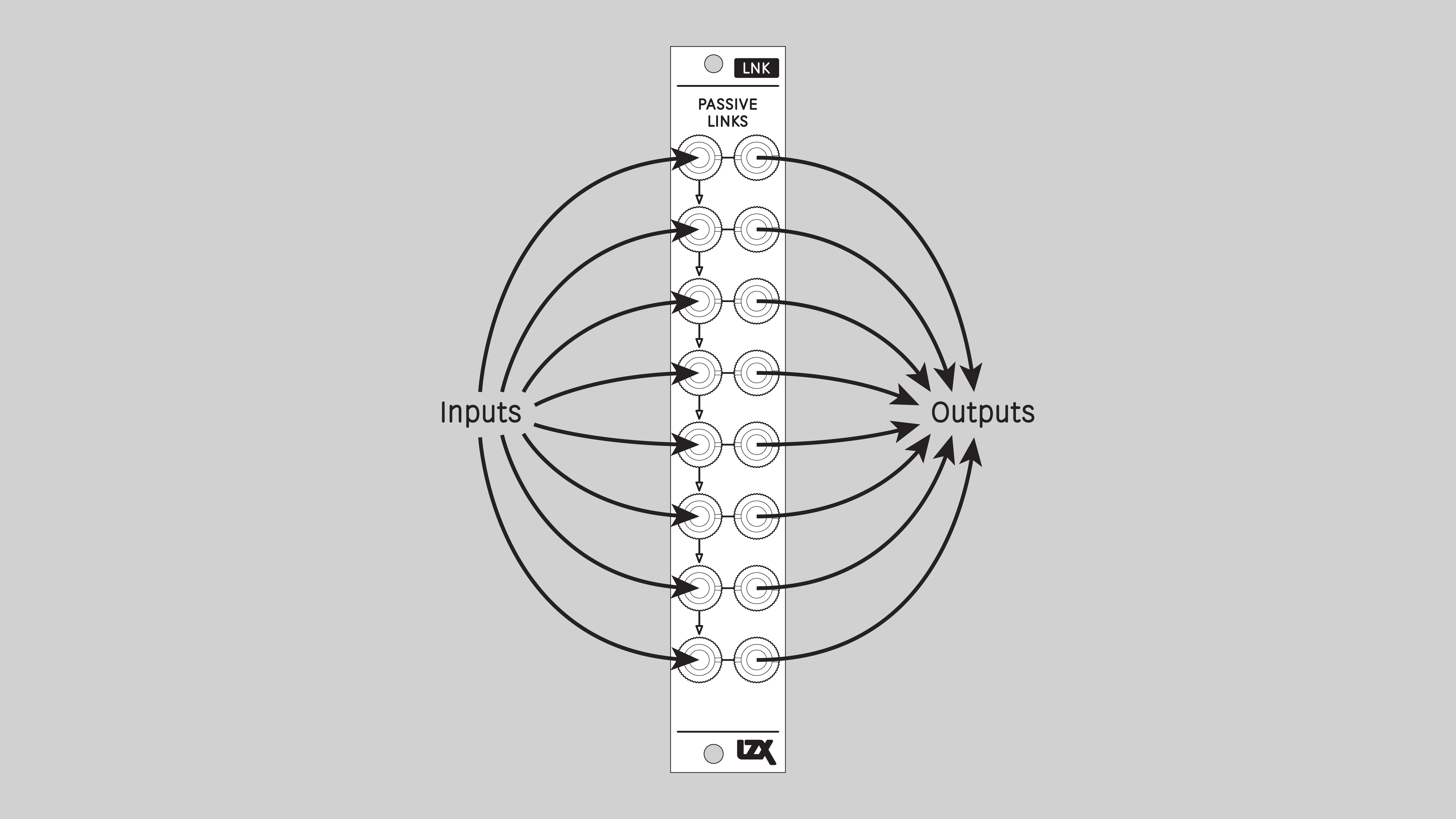

Connectors
Operation

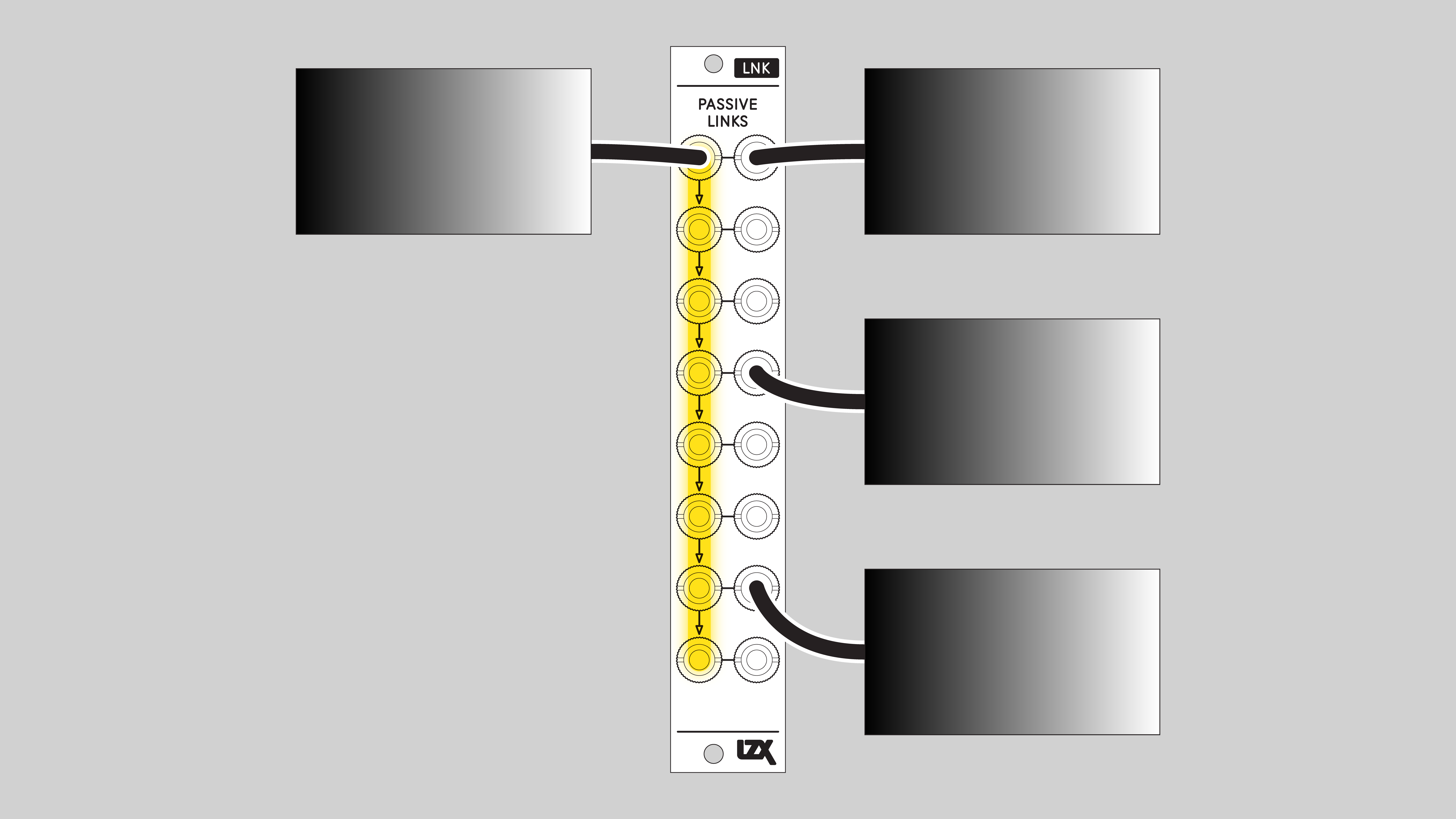

Understanding Cascading Input Jacks

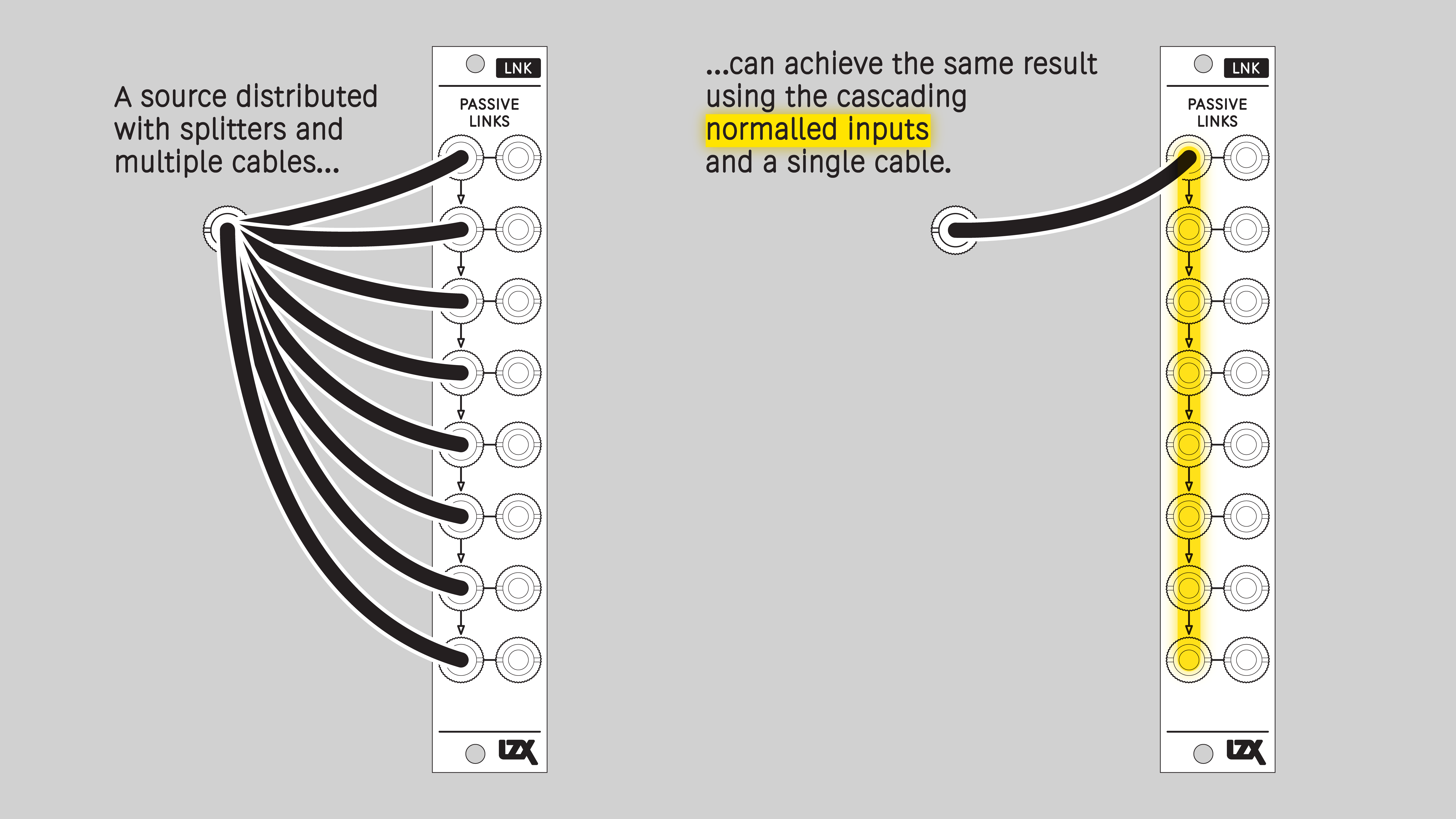

LNK uses switched, or normalled, connections between its input jacks. With no cable inserted, a signal flows down from one input jack to another. This connection is overridden when a cable is inserted. Normalled inputs are indicated on the front panel with arrows.
Example Patches
Installation
Requirements
-
EuroRack enclosure.
-
Two M2.5 x 6mm mounting screws, or screws provided or specified by the enclosure manufacturer.
-
#1 Phillips head screwdriver, or hand tool provided or specified by the enclosure manufacturer.
Procedure
-
Power off and disconnect the EuroRack enclosure’s power supply and any attached DC adapters.
-
Ensure that no mounting screws are in any holes in the area where you wish to mount the module.
-
Carefully test fit the module in the open space in the EuroRack enclosure. If it is obstructed by the enclosure or any internal assemblies, abort this procedure.
-

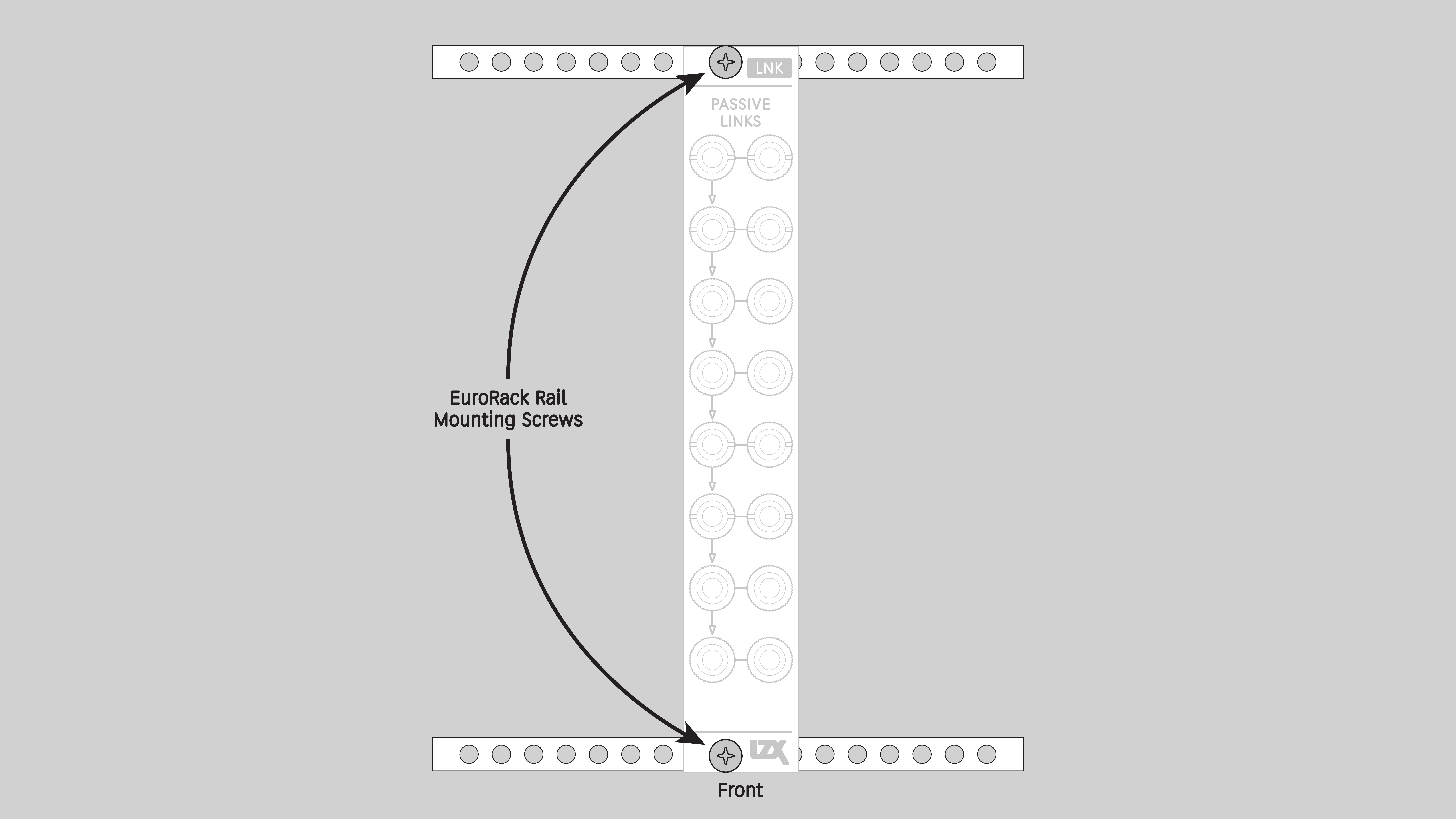

Mount the module to the EuroRack rails using all mounting holes.
-
Power on the EuroRack enclosure and start patching.
Full Specifications
Technical Data
| | | | ------------------- | ------------------------------------- | | Mounting Width | 4 HP | | Mounting Hole Count | 2 | | Module Width | 20.32 mm | | Module Height | 128.5 mm | | Product Box Width | 4 in / 101.6 mm | | Product Box Height | 2 in / 50.8 mm | | Product Box Depth | 6 in / 152.4 mm | | RoHS Compliance | Manufactured with lead-free processes | | Video Sync | None |
<!-- | Manufacturer Part Number | | | Pronunciation | | | Module Depth | TODO | | Mounting Depth | TODO | | Product Weight | TODO | | Included | | -→
Maintenance
Keep your module free of dust and debris by performing periodic cleaning. Spots may be cleaned from the frontpanel with a microfiber cloth and isopropyl alcohol or other electronics cleaner.
Hardware Revisions
The hardware revision code is printed on the circuit board visible from the rear of the module.
LNK-RevA
Initial production version, February 2025
LNK-RevA Schematic Diagram <br /> [Download PDF](/pdf/modules/lnk/lnk_reva_Schematic_Diagram.pdf)
LNK-RevA Interactive Bill of Materials <br /> [Download ZIP](/zip/modules/lnk/lnk_reva_Interactive_Bill_of_Materials.zip)
DIY
Downloads for the complete schematic and an interactive HTML Bill of Materials are found in the [Hardware Revisions](/modules/lnk/manual#hardware-revisions) section above.
Partial DIY Components
The partial DIY kit from LZX includes the printed circuit board and front panel. The following components must be purchased separately from electronics parts vendors.
| Manufacturer | Manufacturer Part Number | Description | Quantity | Reference Designators | | ----------------------------------- | ------------------------ | ------------------------ | -------- | --------------------------------------------------------------------- | | Wenzhou QingPu Electronics Co., Ltd | WQP-WQP518MA | 3.5mm Jack Mono Switched | 16 | J1, J2, J3, J4, J5, J6, J7, J8, J9, J10, J11, J12, J13, J14, J15, J16 |
Assembly Instructions
This assembly job is recommended for intermediate level DIYers who are comfortable soldering thru hole joints in close proximity to surface mounted parts.
-
Mount and solder front-facing jacks.
-
Attach the front panel and secure it with mounting nuts for the jacks.
Community
Search the LZX community forum for build notes, patch ideas, and troubleshooting threads about LNK.
